NVR-P32-16P-4VA,32 Channel 1.5U 16POE 4K&H.265 Lite Network Video Recorder Empower series

SKU: NVR-P32-16P-4VA

Promotion Sign In For Promotion

Price Sign In For Price

Number of Camera Channels

32CH

Number of PoE Ports

16 Ports

Max. Storage Capacity

24TB

Resolution

8MP

Quantity

Add to My List

Create a list

- 32 Channel Network Video Recorder
- 16 Ports Built-in PoE
- 200MB Bandwidth
- Up to 8MP
- 2MP @ 60fps/CH
- 5MP @ 30fps/CH
- 6MP @ 30fps/CH
- 8MP @ 30fps/CH
- HDMI up to 4K (3840X2160)/ VGA up to (1920 X1080)
- 4 SATA up to 24TB
- H.265/ H.264
- 2CH@4K, 2CH@6MP, 3CH@5MP, 8CH @2MP
- 1CH/ 1CH, RCA
- 16 In / 4 Out
- 10/100/1000, 1 Network Port

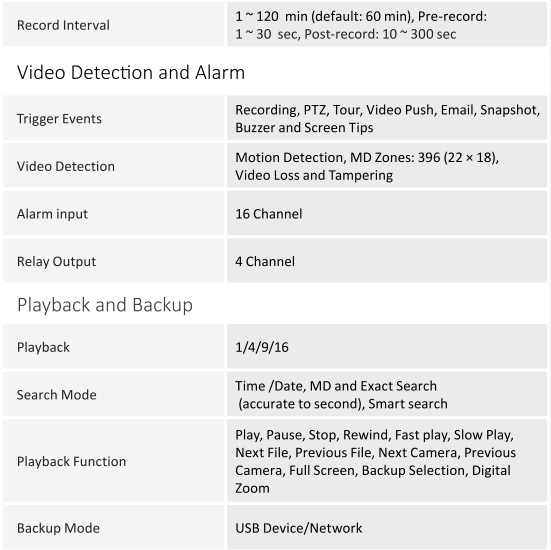

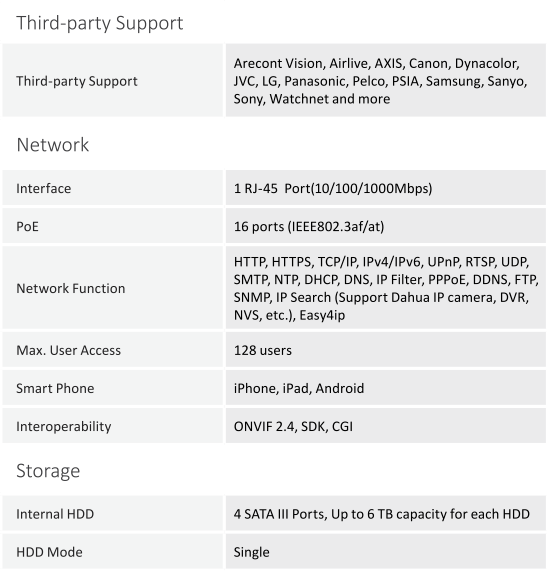

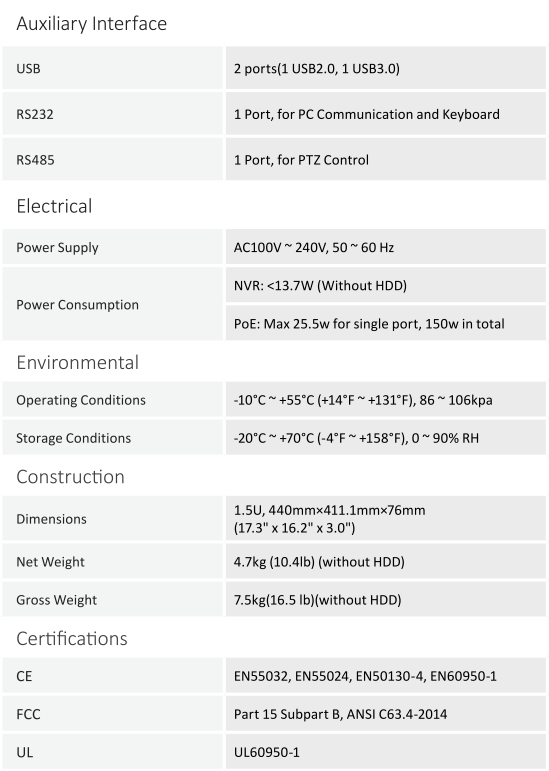

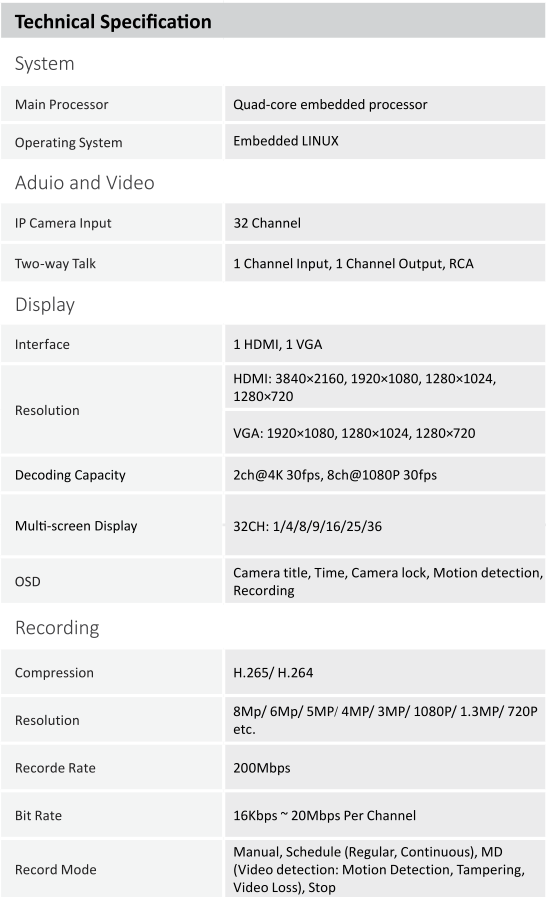

spec sheet

System Overview

This NVR is introduced as the first Lite series NVR that supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control.

Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions.

The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with IP cameras.

Functions

4K Resolution

The NVR supports 4K ultra HD resolution (3840 x 2160) for recording, live
viewing and playback.

High Efficiency Video Coding (H.265)

The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers such impressive compression by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.

Intelligent Video System (Optional)

Working with built-in intelligent video analytics IP cameras, the NVR has the ability to detect and analyze moving objects for improved video surveillance. The NVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre determined line has been crossed, People Counting, ideal for business intelligence, and Face Detection, for searching or identification of individuals.

ANR (Automatic Network Replenishment Technology)

Video record in SD card in IP cameras when the network breaks down, and after the network recovered, the video will be transferred to NVR and then recorded in it.
