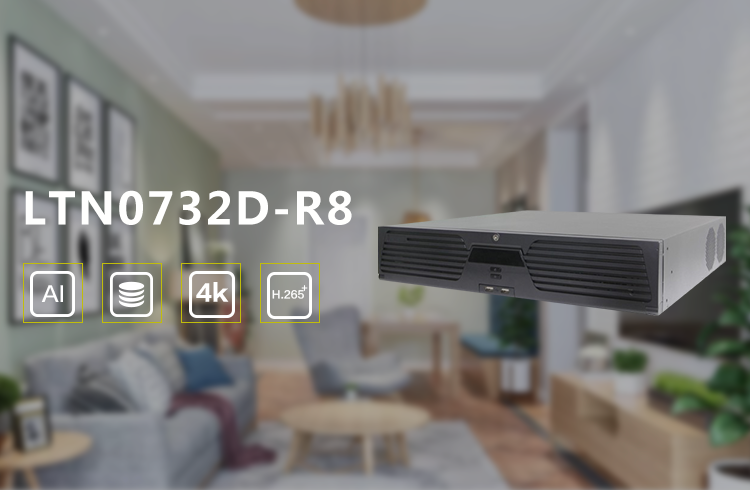

LTN0732D-R8, Platinum Enterprise Level 32 Channel NVR, RAID, 2U, SATA up to 8TB, No Pre-Installed Storage
SKU: LTN0732D-R8
Promotion Sign In For Promotion
Price Sign In For Price
32CH
8TB
Add to My List
- Create a list
- 32 Channel Network Video Recorder
- Video Input: 32CH IP@320Mbps
- VGA1 up to 2K (2560 × 1440)/60Hz resolution, HDMI1 up to 4K (3840 × 2160)/60Hz; VGA2 /HDMI2 output up to 1080P
- Up to 16-ch synchronous playback
- Human Body Detection analytics to improve the alarm accuracy rate effectively
- Up to 8 SATA hard disks and 1 eSATA disk can be connected for both recording and backup
- HDD hot swap with RAID0, RAID1, RAID5, RAID6, RAID10 storage scheme configurable
| Video / Audio input | |
| IP video input | 32-ch |
| Two-way audio input | 1-ch, BNC (2.0 Vp-p, 1 kΩ) |
| Incoming bandwidth | 320Mbps |
| Outgoing bandwidth | 256 Mbps, or 200 Mbps (when RAID is enabled) |
| Remote connection | 256 Mbps, or 200 Mbps (when RAID is enabled) |
| Video / Audio output | |
| Recording resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF |
| HDMI output / HDMI1 | VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, | |
| 1600 × 1200/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| VGA output/ HDMI2 | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio output | 2-ch, RCA (Linear, 1 KΩ) |
| Synchronous playback | 16-ch |
| Hard disk | |
| SATA | 8 SATA interfaces |
| eSATA | 1 eSATA interface |
| Capacity | Up to 8TB capacity for each HDD |
| Disk array | |
| Array type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| External interface | |
| Network interface | 2 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Serial interface | RS-232; RS-485; Keyboard |
| USB port | 2 × USB 2.0 on front panel and 1× USB 3.0 on rear panel |
| Alarm in/out | 16 In / 4 Out |
| General | |
| Power supply | 100 ~ 240 VAC, 50 ~ 60 Hz |
| Power Consumption | ≤200W |
| Working temperature | 14°F - 131°F(-10 °C ~ +55 °C) |
| Working humidity | 10% ~ 90% |
| Dimension | 17.5" ×18.5"×3.5"(445 × 470 ×90 mm) |
| Weight | ≤ 22 lb (10 Kg, without hard disk) |
