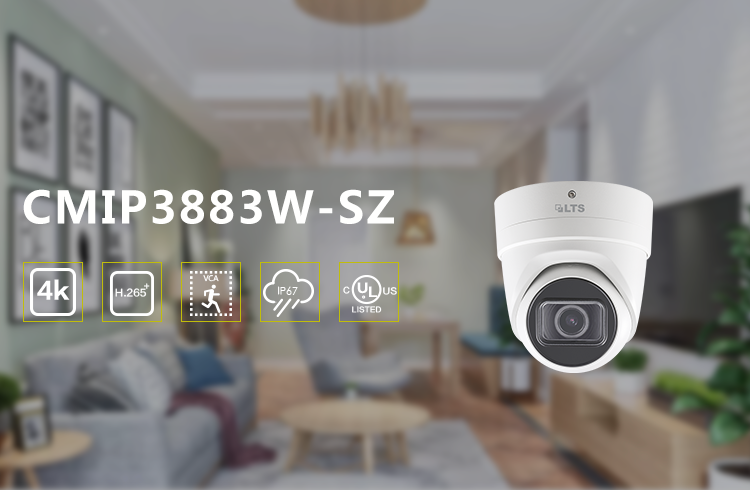

LTCMIP3883W-SZ, Platinum Varifocal Turret 4K IP Camera, 8MP, 2.8-12mm, True WDR, Audio/Alarm

Price Sign In For Price

Promotion Sign In For Promotion

Membership Level

Get Points after Purchase

Member(your level)

$1.10

Camera Style

Turret

Resolution

8MP

Quantity

Office

Inventory

TX - Dallas* (your office)

0 pcs

TX - Houston

0 pcs

NJ - Mt Laurel*

0 pcs

AZ - Phoenix

0 pcs

CA - Los Angeles*

0 pcs

Camera
Image Sensor	1/2.5" Progressive Scan CMOS
Min. Illumination	0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/10,000 s
Lens	2.8-12mm@F1.4, Motorized Lens, Angle of view：120°- 36°
Lens Mount	Φ14
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	DWDR
Angle Adjustment	Pan:0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression	Main stream: H.265+/H.265/H.264 Zip+/H.264
	Sub stream: H.265+/H.265/H.264 Zip+/H.264/MJPEG
	Third stream: H.265+/H.265/H.264 Zip+/H.264
H.264 Type	Main / High Profile
H.265 Type	Main Profile
Video Bit Rate	256 Kbps ~ 16 Mbps
Dual Stream	Support
Max. Resolution	3840 × 2160
Main Stream	60Hz: 20fps (2560×1920), 30fps (2048x1536), 30fps(1920×1080), 30fps(1280×720)
	50Hz: 20fps (2560×1920), 25fps (2048x1536), 25fps(1920×1080), 25fps(1280×720)
Sub Stream	60Hz: 30fps (352×240, 640x480) 50Hz: 25fps (352×288, 640x480)
Others	Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask
Network
Network Storage	Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion Detection, VideoTampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD Full, HDD error, alarm input, alarm output
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	One key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Reset	Support
General
Working Temperature	-22 °F ~ 140 °F (-30 °C ~ 60 °C)
/Humidity	Humidity 95% or less (non-condensing)
Power Supply	DC 12V ± 10%, PoE (802.3af)
Power Consumption	Max. 5.5W (Max. 7.5W with ICR on)
IR Range	Approx. 100ft (30 meters)
Weather Proof Ratings	IP67
Impact Protection	IK10
Dimensions	Φ 5 .35” × 5.73”(Φ 135.8 × 145.5 mm)
Weight	2.34lbs (1060g)
