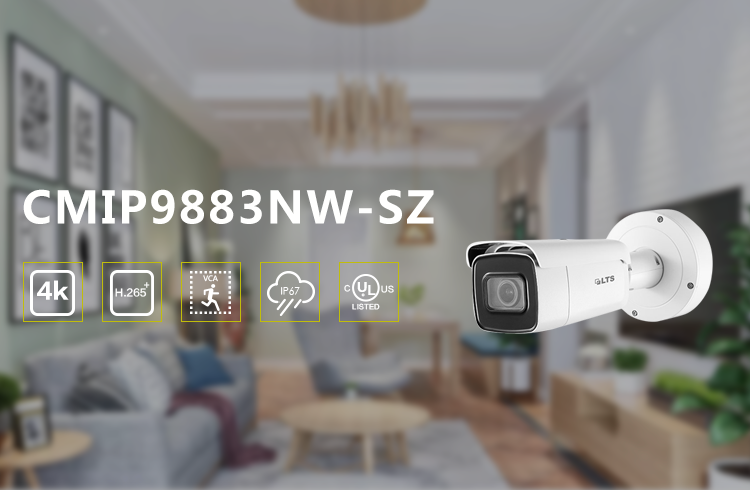

LTCMIP9883NW-SZ, Platinum Varifocal Motorized Bullet Network IP Camera, 8MP/4K, 2.8-12mm, True WDR, Matrix IR 2.0, Audio/Alarm

Price Sign In For Price

Promotion Sign In For Promotion

Membership Level

Get Points after Purchase

Camera Style

Bullet

Resolution

8MP

Quantity

Office

Inventory

Camera
Image Sensor	1/2.5" Progressive Scan CMOS
Min. Illumination	0.018 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Lens	2.8-12mm @F1.6, Motorized Lens, Angle of view：105° to 34.5°
Lens Mount	Φ14
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	120dB
Compression Standard
Video Compression	Main stream: H.265+/H.265/H.264 Zip+/H.264
	Sub stream: H.265+/H.265/H.264 Zip+/H.264/MJPEG
	Third stream: H.265+/H.265/H.264 Zip+/H.264
H.264 Type	Main Profile / High Profile
Video Bit Rate	32 Kbps to 16 Mbps
Audio Compression	G722.1/G711ulaw/G711alaw/G726/MP2L2
Audio Bit Rate	32 to 128kbps
Max. Resolution	3840 × 2160
Frame Rate	50Hz: 20 fps (3840 × 2160), 25 fps (2944 × 1656, 2560 × 1440, 1920 × 1080, 1280 × 720)
	60Hz: 20 fps (3840 × 2160), 30 fps (2944 × 1656, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream	50Hz: 25fps (640 × 360, 352 × 288)
	60Hz: 30fps (640 × 360, 352 × 240)
Third Stream	50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
	60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Setting	Rotate Mode, Saturation, brightness, contrast, sharpness adjustable by client software or by web
Network
Network Storage	Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering, network disconnected, IP address conflict, illegal login,
	HDD full, HDD error
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark,
	IP address filter
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Reset	Yes
General
Working Temperature	-22 °F ~ 140°F (-30 °C ~ 60 °C)
/Humidity	Humidity 95% or less (non-condensing)
Power Supply	DC12V ± 25%, PoE (802.3af) Terminal block for DC input
IR Range	Up to 165ft (50m)
Weather Proof Ratings	IP67
Impact Protection	IK10
Dimensions	Φ 5 .7” × 13.1”(Φ 144.13 × 332.73 mm)
Weight	4.2 lbs (1893 g)
