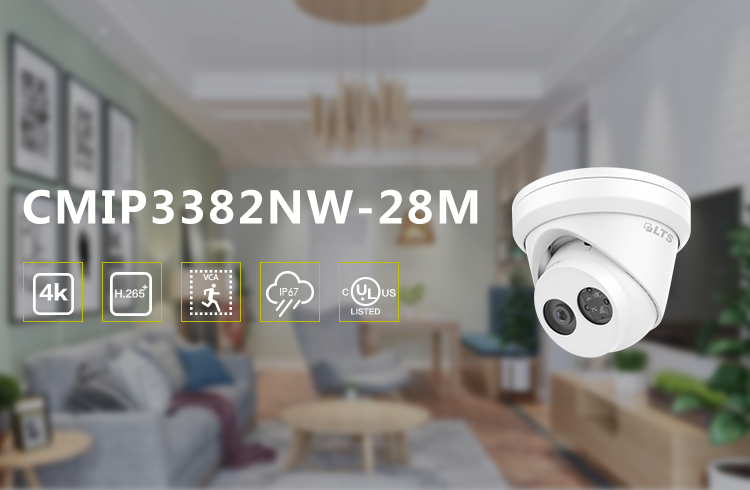

LTCMIP3382NW-28M, Platinum Turret Network IP Camera, 8MP/4K, 2.8mm, True WDR, Matrix IR 2.0, SD card slot
Price Sign In For Price
Promotion Sign In For Promotion
Membership Level
Price after Using Points
Get Points after Purchase
Camera Style
Camera Style
Turret
Resolution
Resolution
8MP
Quantity
Office
- New List
No List
- 8MP/4K High Definition
- Up to 3840x2160@15fps
- 2.8mm & Fixed Lens
- Matrix IR 2.0, IR Range up to 100 feet
- H.265, H.265+, Ready
- True WDR 120dB
- Weatherproof IP67
- MicroSD Slot up to 128GB
- DC 12V, PoE
UL Listed
- ONVIF

Camera | |
Image Sensor | 1/2.5" Progressive Scan CMOS |
Min. Illumination | 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
Shutter Speed | 1/3 s to 1/10,000 s |
Lens | 2.8mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124° |
Lens Mount | M12 |
Day & Night | IR cut filter |
DNR | 3D DNR |
Wide Dynamic Range | True WDR 120dB |
Angle Adjustment | Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360° |
Compression Standard | |
Video Compression | Main stream: H.265/ H.264 |
Sub stream: H.265/H.264/ MJPEG | |
Third stream: H.265/ H.264 | |
H.265 Type | Main Profile |
Video Bit Rate | 32 Kbps ~ 16 Mbps |
Dual Stream | Support |
Image | |
Max. Resolution | 3840 × 2160 |
Main Stream | 60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720) |
50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720) | |
Sub Stream | 60Hz: 30fps (640 × 360, 352 × 240) / 50Hz: 25fps (640 × 360, 352 × 288) |
Third Stream | 60Hz: 30fps (1280 ×720) / 50Hz: 25fps (1280 ×720) |
Behavior Analysis | Line crossing detection, intrusion detection |
Others | Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask |
Network | |
Network Storage | Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
General | Password Protection, IP Address Filtering, Anonymous Access, Watermark |
Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
Interface | |
Communication Interface | 1 RJ45 10M/100M Ethernet port |
Reset | Yes |
General | |
Working Temperature | -22 °F ~ 140 °F (-30 °C ~ 60 °C) |
/Humidity | Humidity 95% or less (non-condensing) |
Power Supply | DC 12V ± 25%, Φ5.5 mm coaxial power plug PoE (802.3af, class 3) |
Power Consumption | Max. 5.5W 0.5A, max. 6W PoE (802.3af, 36V to 57V), 0.3A to 0.2A, max. 7.5W |
IR Range | Up to 100ft |
Weather Proof Ratings | IP67 |
Dimensions | 5.01″ × 3.78″ (Φ 127.3 × 95.9 mm) |
Weight | 1.4 lb. (620 g) |
