LTS

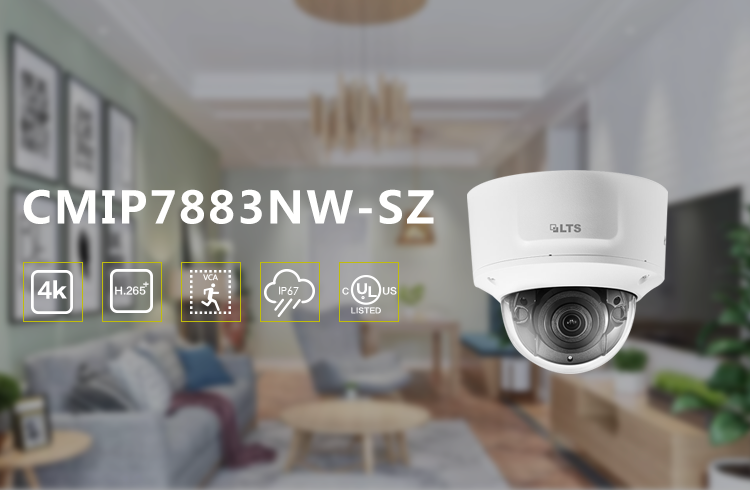

LTCMIP7883NW-SZ, Platinum Varifocal Motorized Dome IP Camera, 4K/8MP, 2.8-12mm, True WDR, Matrix IR 2.0, Audio/Alarm
SKU: LTCMIP7883NW-SZ
You get 1495 reward points per unit after placing order
Promotion Sign In For Promotion
Price Sign In For Price
Use reward points to enjoy maxinum $29.90 discount per unit
Dome
8MP
Add to My List
- Create a list
- 8MP/4K High Definition
- Up to 3840x2160@15fps
- 2.8-12mm Varifocal Motorized Lens with Smart Focus
- 0.018 Lux @ F1.6
- Matrix IR 2.0, IR Range up to 100 feet
- H.265, H.265+, H.264, H.264+ Ready
- True WDR 120dB
- IP67 & IK10
- MicroSD Slot up to 128GB
- Audio I/O, Alarm I/O
- DC 12V, PoE
- Built-in Junction Box
| Camera | |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Min. Illumination | 0.01 8 Lux @(F 1.6, AG C O N), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 2.8-12mm@F1.4, Motorized Lens, Angle of view：105° to 34.5° |
| Lens Mount | Φ14 |
| Day & Night | IR cut filter |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Pan:0°~ 355°, Tilt: 0°~ 75°, Rotation: 0°~ 355° |
| Compression Standards | |
| Video Compression | Main stream: H.265+/H.265/H.264 Zip+/H.264 |
| Sub stream: H.265+/H.265/H.264 Zip+/H.264/MJPEG | |
| Third stream: H.265+/H.265/H.264 Zip+/H.264 | |
| H.264/H.264+ Type | Main / High Profile |
| H.265 / H.265+ Type | Main Profile / Main Stream Support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | G722.1/G711ulaw/G711alaw/G726/MP2L2 |
| Audio Bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Image | |
| Max Resolution | 3840 × 2160 |
| Frame Rate | 50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280×720, 640×360, 352×288) 60Hz: 30fps (1280×720, 640×360, 352×240) |
| Image Enhancement | BLC/3D DNR |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser |
| Day Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In |
| General | |
| Operating Conditions | - 22 °F ~ 140 °F (- 30 °C ~ 60 °C) |
| Power Supply | 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.8A max. 10W; PoE (802.3af,36V to 57V), 0.40A to 0.2 A, max. 12W |
| IR Range | Up to 100ft (30m) |
| Protection Level | IP67 |
| Impact Protection | IK10 |
| Material | Metal |
| Dimensions | Φ 6 .04” × 5.24”(Φ 153.4× 133.1 mm) |
| Weight | 2.84lbs (1287g ) |
