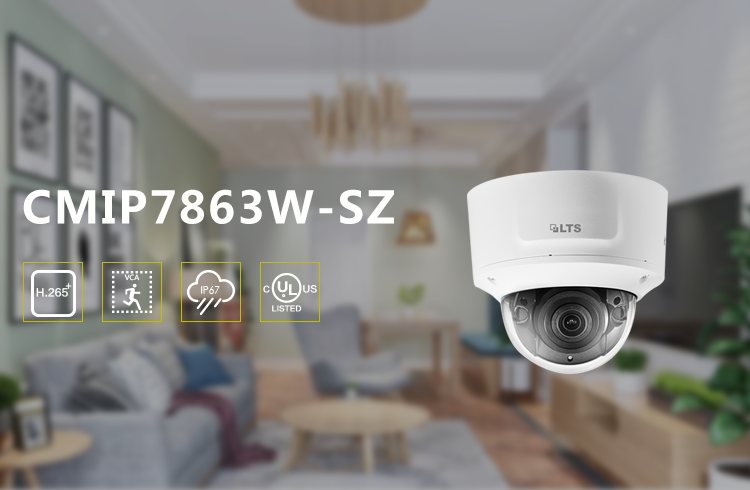

LTCMIP7863W-SZ, Platinum Varifocal Motorized Dome IP Camera, 6MP, 2.8-12mm, True WDR, Matrix IR 2.0, Audio/Alarm
Price Sign In For Price
Promotion Sign In For Promotion
Membership Level
Price after Using Points
Get Points after Purchase
Camera Style
Camera Style
Dome
Resolution
Resolution
6MP
Quantity
Office
- New List
No List
- 6MP High Definition
- Up to 3072x2048@20fps
- 2.8-12mm Varifocal Motorized Lens with Smart Focus
- 0.018 Lux @ F1.6
- Matrix IR 2.0, IR Range up to 100 feet
Advanced Compression H.265+ and H.265
- True WDR 120dB
- IP67 & IK10
- MicroSD Slot up to 128GB
- Audio I/O, Alarm I/O
- DC 12V, PoE
- Built-in Junction Box
Camera | |
Image Sensor | 1/2.9" Progressive Scan CMOS |
Min. Illumination | 0.01 8 Lux @(F1.6, AGC ON), 0 Lux with IR |
Shutter Speed | 1/3 s to 1/100,000 s |
Lens | 2.8-12mm@F1.4, Motorized Lens, AoV 88°- 29° |
Lens Mount | Φ14 |
Day & Night | IR cut filter |
DNR | 3D DNR |
Wide Dynamic Range | 120dB |
Angle Adjustment | Pan:0°~ 355°, Tilt: 0°~ 75°, Rotation: 0°~ 355° |
Compression Standards | |
Video Compression | Main stream: H.265+/H.265/H.264 Zip+/H.264 |
Sub stream: H.265+/H.265/H.264 Zip+/H.264/MJPEG | |
Third stream: H.265+/H.265/H.264 Zip+/H.264 | |
H.264 Type | Main / High Profile |
H.265 Type | Main Profile |
Video Bit Rate | 32 Kbps to 16 Mbps |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
Audio Bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
General | |
Operating Conditions | - 22 °F ~ 140 °F (- 30 °C ~ 60 °C), Humidity 95% or less (non-condensing) |
Power Supply | DC12V |
Power Consumption | DC 12V, 0.8A, Max. 10W |
IR Range | Up to 100ft (30m) |
Protection Level | IP67 |
Impact Protection | IK10 |
Dimensions | Φ 6 .04” × 5.24”(Φ 153.4× 133.1 mm) |
Weight | 2.84lbs (1287g ) |
