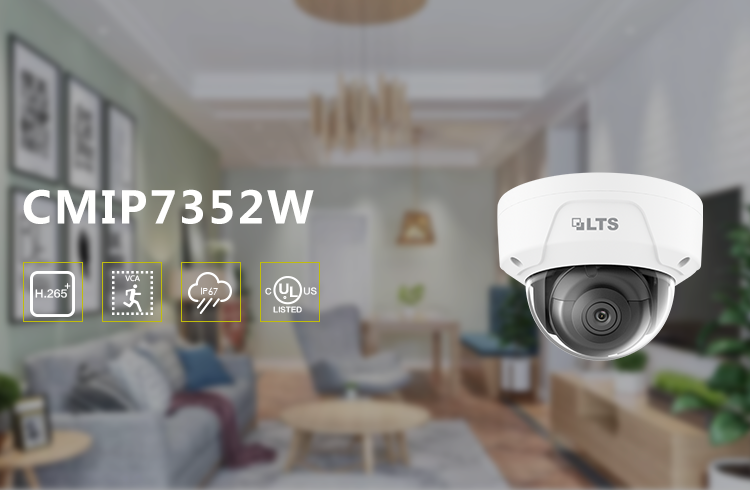

LTCMIP7352W, Platinum Network Vandal Dome IP Camera, 5MP, 4mm, True WDR, Matrix IR 2.0

Price Sign In For Price

Promotion Sign In For Promotion

Membership Level

Get Points after Purchase

Member(your level)

$1.59

Camera Style

Dome

Resolution

5MP

Quantity

Office

Inventory

TX - Dallas* (your office)

0 pcs

TX - Houston

0 pcs

NJ - Mt Laurel*

1 pcs

AZ - Phoenix

0 pcs

CA - Los Angeles*

0 pcs

Camera
Image Sensor	1/2.5" Progressive Scan CMOS
Min. Illumination	Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Shutter Speed	1/3 s to 1/10,000 s
Slow Shutter	Support
Lens	4mm
Lens Mount	M12
Iris	IR cut filter with auto switch
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	120dB
Angle Adjustment	Pan: 0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
Compression Standard
Video Compression	Main stream: H.265/H.264, Main stream: H.265/H.264, Third stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264 Zip+	Support
H.265 Type	Main Profile
265+	Support
Video Bit Rate	32 Kbps to 16 Mbps
Audio Compression (-S)	G.711/G.722.1/G.726/MP2L2
Audio Bit Rate (-S)	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2)
Max. Resolution	2560×1920
Frame Rate	60Hz: 20fps (2560×1920), 30fps (2048x1536), 30fps(1920×1080), 30fps(1280×720) 50Hz: 20fps (2560×1920), 25fps (2048x1536), 25fps(1920×1080), 25fps(1280×720)
Sub Stream	50Hz: 25fps (640 × 360, 352 × 288)
	60Hz: 30fps (640 × 360, 352 × 240)
Third Stream	50Hz: 25fps (1280 ×720)
	60Hz: 30fps (1280 ×720)
Image Enhancement	BLC/3D DNR
Image Settings	Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
ROI (Region of Interest)	Support 1 fixed region for each stream, and face dynamic tracking
Target Cropping	Support
Day/Night Switch	Auto/Scheduled/Alarm Triggered (-S)
Audio (-S)
Environment Noise Filtering	Support
Audio I/O	Support
Sampling Rate	Max. 48kHz
Network
Network Storage	Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function	One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Interface
Communication Interface	1 RJ45 10M/100M Ethernet port
Audio (-S)	1 audio input (line in), 1 audio output interface
Alarm (-S)	1 alarm input, 1 alarm output
On-board Storage	Built-in microSD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis	Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Line Crossing Detection	Cross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
Intrusion Detection	Enter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
Object Removal Detection	Objects removed from the pre-defined region, such as the exhibits on display.
Unattended Baggage Detection	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Recognition	Face detection
General
Operating Conditions	-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply	DC12V ± 10%, PoE (802.3af)
Power Consumption	Max. 5W
IR Range	Approx. 100ft(30 meters)
Protection Level	IP67
Impact Protection	IK10
Dimensions	Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″)
Weight	1.1lbs (500 g)
