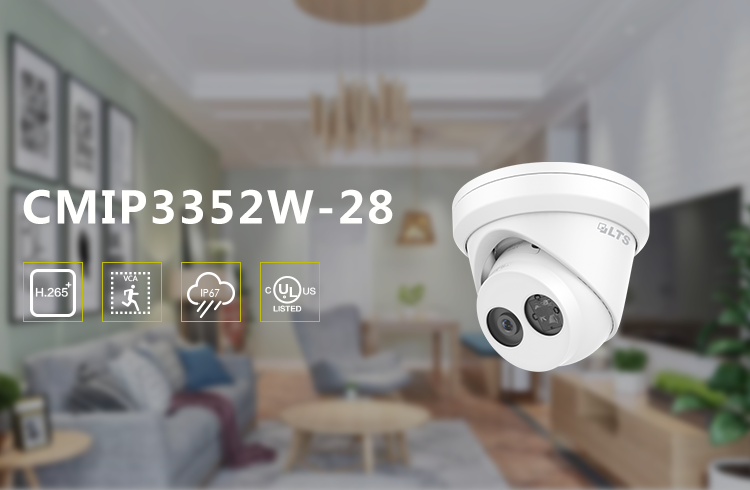

LTCMIP3352W-28, Platinum Turret Network IP Camera, 5MP, 2.8mm, True WDR, Matrix IR 2.0
SKU: LTCMIP3352W-28
You get 636 reward points per unit after placing order
Promotion Sign In For Promotion
Price Sign In For Price
Use reward points to enjoy maxinum $12.72 discount per unit
Turret
5MP
Add to My List
- Create a list
- 5MP High Definition
- Up to 2560x1920@20fps
- 2.8mm Fixed Lens
- Matrix IR 2.0 up to 100 feet
- H.265, H.265+, H.264, H.264+ Ready
- True WDR 120dB
- IP67
- MicroSD Slot up to 128GB
- DC 12V, PoE
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/10,000 s |
| Lens | 2.8mm |
| Lens Mount | M12 |
| Day & Night | IR cut filter with auto switch |
| DNR | 3D DNR |
| Wide Dynamic Range | True WDR 120dB |
| Angle Adjustment | Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360° |
| Compression Standard | |
| Video Compression | Main stream: H.265/ H.264 |
| Sub stream: H.265/H.264/ MJPEG | |
| Third stream: H.265/ H.264 | |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps ~ 16 Mbps |
| Dual Stream | Support |
| Image | |
| Max. Resolution | 2560×1920 |
| Main Stream | 60Hz: 20fps (2560×1920), 30fps (2048x1536), 30fps(1920×1080), 30fps(1280×720) |
| 50Hz: 20fps (2560×1920), 25fps (2048x1536), 25fps(1920×1080), 25fps(1280×720) | |
| Sub Stream | 60Hz: 30fps (352×240, 640x480) 50Hz: 25fps (352×288, 640x480) |
| Others | Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General | Password Protection, IP Address Filtering, Anonymous Access, Watermark |
| Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M Ethernet port |
| Reset | Yes |
| General | |
| Working Temperature | -22 °F ~ 140 °F (-30 °C ~ 60 °C) |
| /Humidity | Humidity 95% or less (non-condensing) |
| Power Supply | DC 12V ± 10%, PoE (802.3af) |
| Power Consumption | Max. 5.5W (Max. 7.5W with ICR on) |
| IR Range | Up to 100ft |
| Weather Proof Ratings | IP67 |
| Dimensions | 5.01″ × 3.78″ (Φ 127.3 × 95.9 mm) |
| Weight | 1.4 lb. (620 g) |
