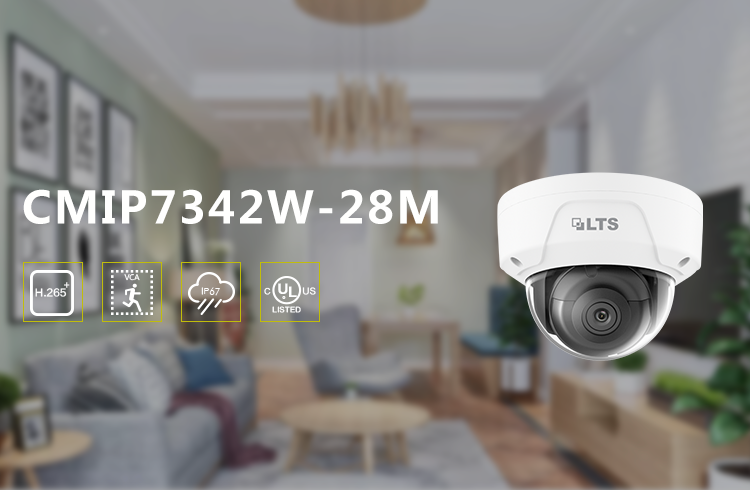

LTCMIP7342W-28M, Platinum Network Vandal Dome IP Camera, 4MP, 2.8mm, True WDR, SD card slot
Price Sign In For Price
Promotion Sign In For Promotion
Membership Level
Get Points after Purchase
Member(your level)
$3.97
Camera Style
Camera Style
Dome
Resolution
Resolution
4MP
Quantity
Office
TX - Dallas* (your office)
0 pcs
TX - Houston
0 pcs
NJ - Mt Laurel*
0 pcs
AZ - Phoenix
0 pcs
CA - Los Angeles*
0 pcs
- New List
No List
TX - Dallas*
TX - Houston
NJ - Mt Laurel*
AZ - Phoenix
CA - Los Angeles*
- 4MP High Definition
- 2560x1440@30fps
- 2.8mm Fixed Lens
- 0.018 Lux @ F1.6
- Matrix IR 2.0, IR Range up to 100 feet
- H.265, H.265+, Ready
- True WDR 120dB
- IP67 & IK10
- MicroSD Slot up to 128GB
- DC 12V, PoE
Camera | |
Image Sensor | 1/3" Progres s ive S can CMOS |
Min. Illumination | 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
Shutter Speed | 1/3 s to 1/10,000 s |
Lens | 2.8 mm: horizontal FOV:98°, vertical FOV: 55°, diagonal FOV: 114° |
Lens Mount | M12 |
Day & Night | IR cut filter |
DNR | 3D DNR |
Wide Dynamic Range | 120dB |
Angle Adjustment | Pan:0° ~ 360°, T ilt: 0° ~ 75°, Rotation: 0° ~ 360° |
Compression Standard | |
Video Compression | Main stream: H.265+/H.265/H.264 Zip+/H.264 |
Sub stream: H.265+/H.265/H.264 Zip+/H.264/MJPEG | |
Third stream: H.265+/H.265/H.264 Zip+/H.264 | |
H.264 / H.264+ Type | Main / High Profile |
H.265 / H.265+ Type | Main Profile / Sub-stream support |
Video Bit Rate | 32 Kbps ~ 16 Mbps |
Dual Stream | Support |
Image | |
Max. Resolution | 2560 × 1440 |
Main Stream | 50Hz:25fps (2560×1440,2304×1296,1920×1080) 60Hz: 30fps (2560×1440,2304×1296,1920×1080) |
Sub Stream | 50Hz: 25fps (640 × 360, 352 × 288)60Hz: 30fps (640 × 360, 352 × 240) |
Third Stream | 50Hz: 25fps (1280×720, 640×360, 352×288) 60Hz: 30fps (1280×720, 640×360, 352×240) |
Others | Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software |
Behavioral Analysis | Line crossing detection, intrusion detection |
Network | |
Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger | Motion Detection, VideoTampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD Full, HDD error |
Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
General | One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter |
Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
Interface | |
Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Reset | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
SVC | H.264 and H.265 encoding |
General | |
Working Temperature | -22 °F ~+140 °F(-30 °C ~ +60 °C ) Humidity 95% or less (non-condensing) |
/Humidity | |
Power Supply | DC 12V ± 25%,PoE(802.3af) |
Power Consumption | Max.6W |
IR Range | Up to 100ft(30m) |
Weather Proof Ratings | IP67 |
Impact Protection | IK10 |
Dimensions | Φ4.4″ × 3.2″ (Φ111 × 82.4 mm) |
Weight | 1.3lbs (610g) |
