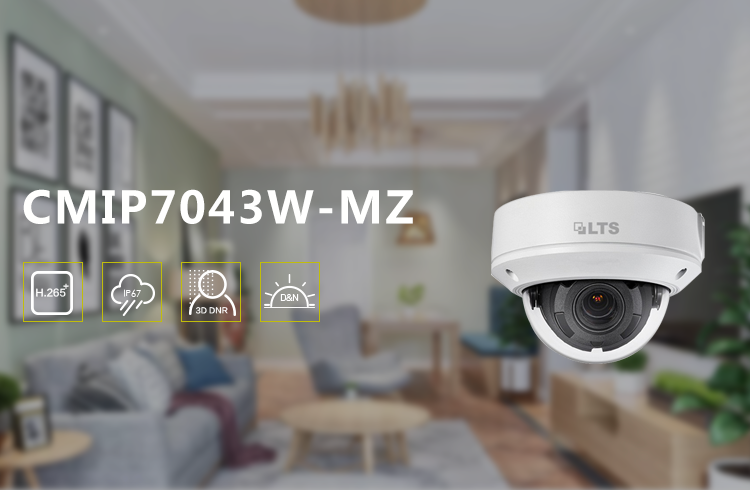

LTCMIP7043W-MZ, Platinum Network Vandal Dome IP Camera, 4MP, True WDR, Motorized Lens, SD card slot
Price Sign In For Price
Promotion Sign In For Promotion
Membership Level
Get Points after Purchase
Member(your level)
$3.58
Camera Style
Camera Style
Dome
Resolution
Resolution
4MP
Quantity
Office
TX - Dallas* (your office)
1 pcs
TX - Houston
0 pcs
NJ - Mt Laurel*
0 pcs
AZ - Phoenix
11 pcs
CA - Los Angeles*
0 pcs
- New List
No List
TX - Dallas*
TX - Houston
NJ - Mt Laurel*
AZ - Phoenix
CA - Los Angeles*
4MP High Definition
Up to 2560x1440@20fps
2.8-12mm Varifocal Motorized Lens
IR Range up to 100 feet
H.265+, H.265, Ready
True WDR 120dB
IP67
DC 12V, PoE
Metal Housing
Camera | |
Image Sensor | 1/3 " Progressive Scan CMOS |
Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 .018Lux @ (F1.6, AGC ON) |
Shutter Speed | 1/3 s to 1/10,000 s |
Lens | 2.8mm to 12mm Horizontal view: 98° to 28°,Vertical view: 51° to 16°,Diagonal view: 115° to 32° |
Lens Mount | Φ14 |
Day & Night | IR cut filter |
DNR | 3D DNR |
Wide Dynamic Range | True WDR 120dB |
Angle Adjustment | Pan: 0° to 355°, tilt: 0°to 70°, rotation: 0° to 360° |
Compression Standard | |
Video Compression | Main stream: H.2 65/H.264 Sub stream: H.265/H.2 64/MJPEG |
H.264 / H.264+Type | Baseline Profile/ Main Profile/ High Profile |
H.265 / H.265+ Type | Main Profile / Main Stream Support |
Video Bit Rate | 32 Kbps ~ 8 Mbps |
Image | |
Max. Resolution | 2560 × 1440 |
Main Stream | 50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
Sub Stream | 50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240) 60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240) |
Image Enhancement | BLC/ 3D DNR |
Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
Network | |
Network Storage | NAS (NFS,SMB/CIFS) |
Alarm Trigger | Motion detection, video tampering alarm, illegal login |
Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
General | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
Standard | ONVIF(PROFILE S,PROFILE G),ISAPI |
Interface | |
Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Reset | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
General | |
Working Temperature | -22 °F ~+122 °F(-30 °C ~ +50 °C) Humidity 95% or less (non-condensing) |
/Humidity | |
Power Supply | DC 12V ± 25% |
Power Consumption | Max. 5W 12 VDC ± 25%, |
IR Range | Up to 100ft |
Weather Proof Ratings | IP67 |
Impact Protection | IK10 |
Dimensions | Φ 5.6″ × 3.9″ (Φ 141 × 99.6 mm) |
Weight | 1.8lb. (820 g) |
