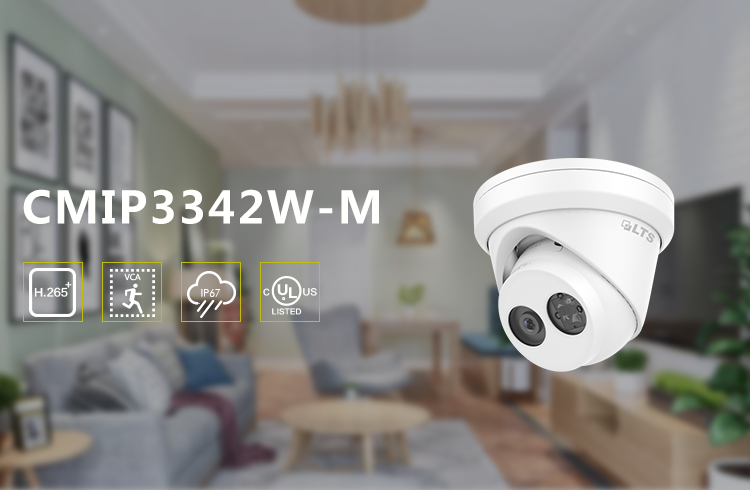

LTCMIP3342W-M, Platinum Turret Network IP Camera, 4MP, 4mm, True WDR, Matrix IR 2.0, SD card slot
Price Sign In For Price
Promotion Sign In For Promotion
Membership Level
Get Points after Purchase
Member(your level)
$4.73
Camera Style
Camera Style
Turret
Resolution
Resolution
4MP
Quantity
Office
NJ - Mt Laurel* (your office)
0 pcs
TX - Houston
0 pcs
CA - Los Angeles*
0 pcs
- New List
No List
NJ - Mt Laurel*
TX - Houston
CA - Los Angeles*
- 4MP High Definition
- Up to 2688x1520@30fps
- 4mm Fixed Lens
- 0.018 Lux @ F1.6
- Matrix IR 2.0, IR Range up to 100 feet
Advanced Compression H.265+ and H.265
- True WDR 120dB
- IP67
- MicroSD Slot up to 128GB
- DC 12V, PoE
Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Min. Illumination | 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
Shutter Speed | 1/3 s to 1/10,000 s |
Lens | 4mm: horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93° |
Lens Mount | M12 |
Day & Night | IR cut filter with auto switch |
DNR | 3D DNR |
Wide Dynamic Range | True WDR 120dB |
Angle Adjustment | Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360° |
Compression Standard | |
Video Compression | Main stream: H.265/ H.264 |
Sub stream: H.265/H.264/ MJPEG | |
Third stream: H.265/ H.264 | |
H.264 / H.264+ Type | Main Profile / High Profile / Main Stream and Sub Stream Support |
H.265 / H.265+ Type | Main Profile / Main stream and sub stream support |
Video Bit Rate | 32 Kbps ~ 16 Mbps |
Dual Stream | Support |
Image | |
Max. Resolution | 2560 × 1440 |
Main Stream | 50Hz:25fps (2560×1440,2304×1296,1920×1080) 60Hz: 30fps (2560×1440,2304×1296,1920×1080) |
Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
Third Stream | 50Hz: 25fps (1280×720, 640×360, 352×288) 60Hz: 30fps (1280×720, 640×360, 352×240) |
Behavioral Analysis | Line crossing detection, intrusion detection |
Network | |
Network Storage | Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger | Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted |
Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
General | One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter |
Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
Interface | |
Communication Interface | 1 RJ45 10M/100M Ethernet port |
Reset | Yes |
General | |
Working Temperature | -22 °F ~ 140 °F (-30 °C ~ 60 °C) |
/Humidity | Humidity 95% or less (non-condensing) |
Power Supply | DC12V ± 25%, |
Power Consumption | 12 VDC, 0.5A, Max. 6W |
IR Range | Up to 100ft |
Weather Proof Ratings | IP67 |
Dimensions | 5.01″ × 3.78″ (Φ 127.3 × 95.9 mm) |
Weight | 1.3 lb. (610g) |
