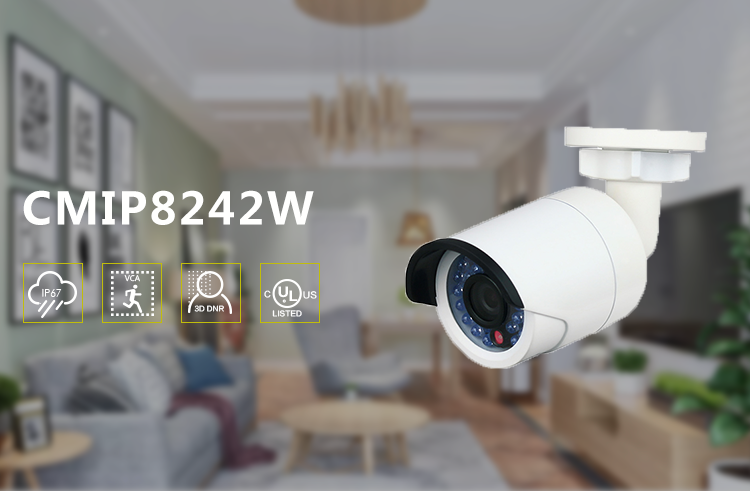

LTCMIP8242W, Platinum Mini IR Bullet Camera, 4.1MP, 4mm, True WDR, White
Price Sign In For Price
Promotion Sign In For Promotion
Membership Level
Price after Using Points
Get Points after Purchase
Member(your level)
$114.24
$1.59
Camera Style
Camera Style
Bullet
Resolution
Resolution
4MP
Quantity
Office
FL - Orlando (your office)
0 pcs
FL - Miami
0 pcs
TX - Houston
0 pcs
NJ - Mt Laurel
0 pcs
CA Main Warehouse
0 pcs
GA - Norcross
0 pcs
- New List
No List
FL - Orlando
FL - Miami
TX - Houston
NJ - Mt Laurel
CA Main Warehouse
GA - Norcross
- 4.1MP High Definition
- 1/3” CMOS
- 2688X1520P@20fps
- 4mm Fixed Lens
- 30 IR LEDs up to 100ft
- 3D DNR, WDR, BLC, VCA
- IP66
- DC 12V, PoE

Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Speed | 1/3 s to 1/10,000 s |
Lens | 4mm, Angle of View: 83 ° |
Lens Mount | M12 |
Day & Night | IR cut filter with auto switch |
DNR | 3D DNR |
Wide Dynamic Range | 120dB |
Compression Standard | |
Video Compression | H.264 / MJPEG/H.264 Zip+ |
H.264 Type | Main Profile |
Video Bit Rate | 32 Kbps ~ 8 Mbps |
Dual Streams | Support |
Image | |
Max. Resolution | 2688×1520 |
Frame Rate | 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) |
50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) | |
Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
BLC | Support, zone configurable |
ROI Codec | Support |
Network | |
Network Storage | NAS (Support NFS,SMB/CIFS), ANR |
Alarm Trigger | Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
General | One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access |
Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
Interface | |
Communication Interface | 1 RJ45 10M/100M Ethernet port |
Reset | Yes |
General | |
Working Temperature | -22 °F ~ 140 °F (-30 °C ~ 60 °C) |
/Humidity | Humidity 95% or less (non-condensing) |
Power Supply | DC12V ± 10%, PoE (802.3af) |
Power Consumption | Max. 5W |
IR Range | Approx. 100ft (30 meters) |
Weather Proof Ratings | IP66 |
Dimensions | 2.4” × 3.0” × 5.5”(60.4×76.9×139.2 mm ) |
Weight | 1.1 lbs (500g) |
