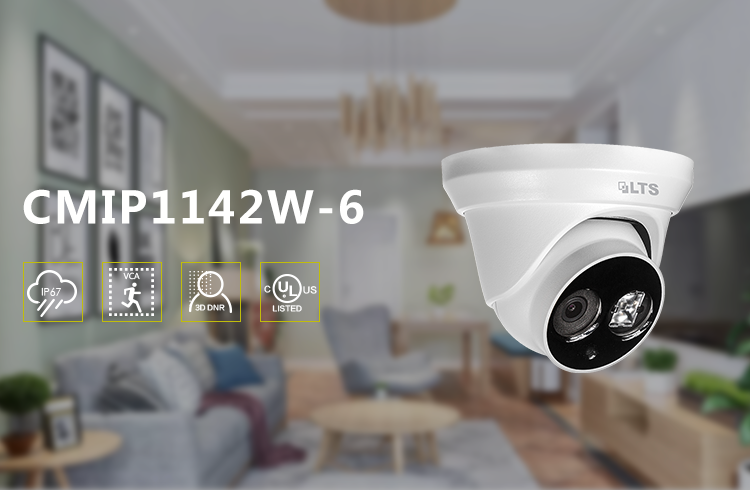

LTCMIP1142W-6, Platinum Matrix IR Turret Network IP Camera, 4.1MP, 6mm, True WDR
Price Sign In For Price
Promotion Sign In For Promotion
Membership Level
Price after Using Points
Get Points after Purchase
Silver(your level)
$117.65
$5.16
Camera Style
Camera Style
Turret
Resolution
Resolution
4MP
Quantity
Office
CA - San Francisco (your office)
0 pcs
CA Main Warehouse
0 pcs
TX - Houston
0 pcs
NJ - Mt Laurel
0 pcs
AZ - Phoenix
0 pcs
- New List
No List
CA - San Francisco
CA Main Warehouse
TX - Houston
NJ - Mt Laurel
AZ - Phoenix
- 4.1MP High Definition
- 6mm Fixed Lens
- 2688X1520P@20fps
- 1 Matrix IR LED up to 100ft
- True WDR 120dB
- 3D DNR, BLC, VCA
- IP66
- DC 12V, PoE
- Junction Box Sold Separately
Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Speed | 1/3 s to 1/10,000 s |
Lens | 6mm, Angle of View: 55.4° |
Lens Mount | M12 |
Day & Night | IR cut filter with auto switch |
DNR | 3D DNR |
Wide Dynamic Range | 120dB |
Angle Adjustment | Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360° |
Compression Standard | |
Video Compression | H.264 / MJPEG/H.264 Zip+ |
H.264 Type | Main Profile |
Video Bit Rate | 32 Kbps ~ 8 Mbps |
Dual Streams | Support |
Image | |
Max. Resolution | 2688×1520 |
Frame Rate | 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) |
50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) | |
Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
BLC | Support, zone configurable |
ROI Codec | Support |
Network | |
Network Storage | NAS (Support NFS,SMB/CIFS), ANR |
Alarm Trigger | Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
General | One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access |
Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
Interface | |
Communication Interface | 1 RJ45 10M/100M Ethernet port |
Reset | Yes |
General | |
Working Temperature | -22 °F ~ 140 °F (-30 °C ~ 60 °C) |
/Humidity | Humidity 95% or less (non-condensing) |
Power Supply | DC12V ± 10%, PoE (802.3af) |
Power Consumption | Max. 5.5W (Max. 7.5W with ICR on) |
IR Range | Up to 100ft (30 meters) |
Weather Proof Ratings | IP66 |
Dimensions | Φ5.0” × 3.8” (Φ127×97.5mm) |
Weight | 1.5 lbs (670g) |
