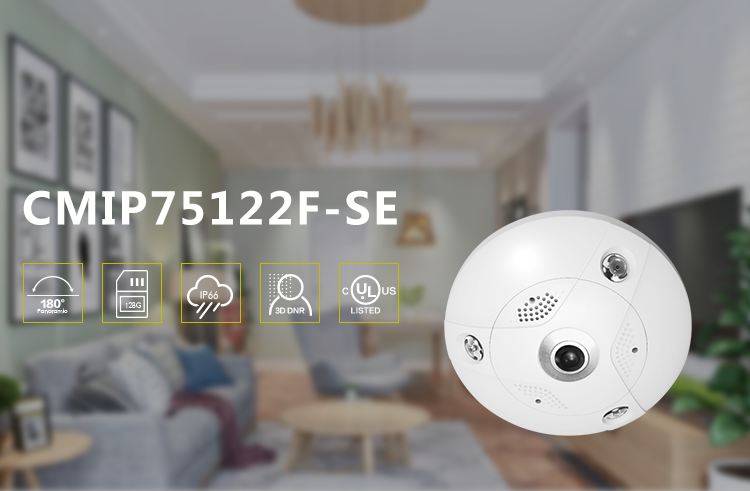

LTCMIP75122F-SE, Platinum Fisheye Network IP Camera,12.3MP, 1.98mm, Audio/Alarm, ePTZ View
Price Sign In For Price
Promotion Sign In For Promotion
Membership Level
Get Points after Purchase
Member(your level)
$3.99
Camera Style
Camera Style
Fisheye
Resolution
Resolution
12MP
Quantity
Office
TX - Dallas* (your office)
0 pcs
TX - Houston
0 pcs
NJ - Mt Laurel*
0 pcs
AZ - Phoenix
0 pcs
CA - Los Angeles*
0 pcs
- New List
No List
TX - Dallas*
TX - Houston
NJ - Mt Laurel*
AZ - Phoenix
CA - Los Angeles*
- 12.3MP High Definition
- 1.98mm Fixed Lens
- 1/1.7" Progressive Scan CMOS
- Outdoor / Indoor Application
- Up to 4000x3072 Resolution
- Real Time Streaming
- 360° Fisheye View
- Multiple Viewing Modes, Split 180 °, ePTZ View
- Audio I/O
- Weatherproof IP66,
- Vandalproof IK10
- DC 12V, PoE
Applicable to LTN86XX / LTN89XX / LTN07XX

Camera | |
Image Sensor | 1/1.7" Progressive Scan CMOS |
Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0.04Lux @ (F2.4, AGC ON), 0 Lux with IR |
Shutter Speed | 1/25 (1/30)s ~ 1/100,000s |
Lens | 1.98mm @F2.4, angle of view:360° |
Lens Mount | M12 |
Day & Night | IR cut filter with auto switch |
DNR | 3D DNR |
Wide Dynamic Range | Digital WDR |
Compression Standard | |
Video Compression | H.264 / MJPEG |
H.264 Type | Baseline Profile / Main Profile / High Profile |
Video Bit Rate | 32 Kbps ~ 16 Mbps |
Audio Compression | G.711/G.726/MP2L2 |
Audio Bit Rate | 64Kbps (G.711) / 16Kbps (G.726)/ 64Kbps (MP2L2) |
Image | |
Max. Resolution | 4000 × 3072 |
Live Model | Mode1: 1×Fisheye(main stream) + 1×Fisheye(sub stream) + 3×PTZ |
Mode2: 1×Panorama(main stream) + 1×Panorama(sub stream) | |
Mode3: 4PTZ | |
Mode4: Fisheye | |
Frame Rate | Model 1: 50Hz: 1×Fisheye(2560×2560, 2048×2048, 1280×1280, 10fps) + 1×Fisheye(720×720, 10fps)+3×PTZ(1600×1200, 10fps) 60Hz: 1×Fisheye(2560×2560, 1280×1280, 10fps) + 1×Fisheye(720×720, 10fps)+3×PTZ(1600×1200, 10fps) |
Model 2: 50Hz: 1×Panorama(3072×2304, 3072×1152, 12.5fps) + 1×Panorama(704×576, 12fps) 60Hz: 1×Panorama(3072×2304, 3072×1152, 15fps) + 1×Panorama(704×576, 15fps) | |
Model 3: 50Hz: 4×PTZ(1600×1200,12.5fps) 60Hz: 4×PTZ(1600×1200,15fps) | |
Model 4: 50Hz: 1×Fisheye(4000×3072, 20fps,3072×3072, 2560×2560, 25fps)+1×fisheye(720×720,704×576, 12.5fps) , 60Hz: 1×Fisheye(4000×3072, 20fps,3072×3072, 2560×2560, 25fps)+1×fisheye(720×720, 704×576, 15fps) | |
Image Setting | Saturation, Brightness, Contrast, Hue, Sharpness, AGC, White Balance |
Day/Night Switch | Auto/Schedule/Alarm Trigger |
ROI | Up to 4 fixed areas in each stream |
Intelligent | |
Heat Map | Recording the motion of foot traffic over a period of time and displays temporal density and spatial statistics in different colors. |
Network | |
Network Storage | NAS (Support NFS,SMB/CIFS) |
Alarm Trigger | Line crossing detection, Intrusion detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP ONVIF(PROFILE S,PROFILE G), PSIA, CGI, ISAPI |
Security | User Authentication, Watermark, IP address filtering, Anonymous access |
Interface | |
Communication Interface | 1 RJ45 10M/100M/1000M Ethernet interface; 1 RS485 interface(-S) |
On-board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Audio Input | 1 3.5mm audio interface, Mic in/Line in; 1 built-in microphone by default, 24db |
Audio Output | 1 3.5mm audio output interface;1 built-in speaker by default, support echo cancellation |
Alarm Input | 1 |
Alarm Output | 1 |
General | |
Working Temperature / Humidity | -22 °F – 140 °F (-30 °C – 60 °C) Humidity 95% or less (non-condensing) |
Power Supply | 12 VDC ± 10% / PoE (802.3af) |
Power Consumption | Max. 14.7W |
IR Range | About 50ft(15m) |
Impact Protection | IEC60068-2-75Eh, 20J; EN50102, up to IK10 |
Ingress Protection Level | IP66 |
Dimensions | Φ6.6”× 1.7”(Φ167.4 × 43.8mm) |
Weight | 3.1lb(1400g) |
