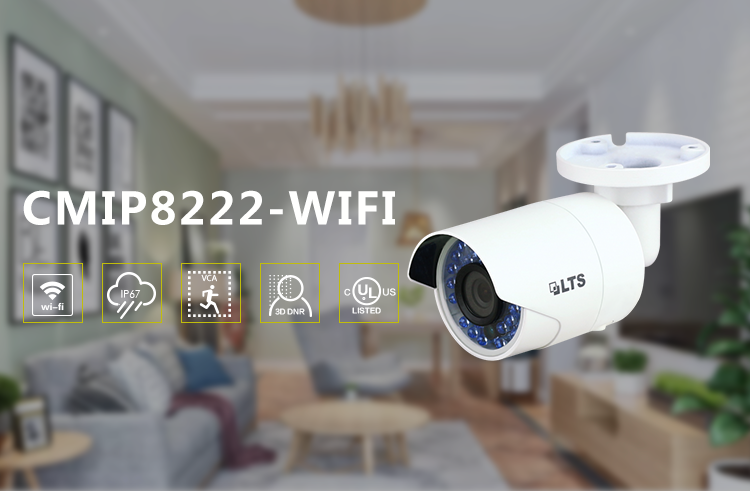

LTCMIP8222-WIFI, Platinum Network Mini Wifi Bullet WIFI IP Camera, 2MP, 4mm, Wireless

Price Sign In For Price

Promotion Sign In For Promotion

Membership Level

Get Points after Purchase

Silver(your level)

$4.95

Camera Style

Bullet

Resolution

2MP

Quantity

Office

Inventory

CA - San Francisco (your office)

0 pcs

TX - Houston

0 pcs

NJ - Mt Laurel*

0 pcs

AZ - Phoenix

0 pcs

CA - Los Angeles*

0 pcs

GA - Norcross

0 pcs

FL - Miami

0 pcs

TX - Dallas*

0 pcs

Camera
Image Sensor	1/2.8" Progressive S can CMOS
Min. Illumination	0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/10,000 s
Lens	4mm，Angle of view：85 °
Lens Mount	M12
Day & Night	IR cut filter with auto switch
Digital Noise Reduction	3D DNR
Wide Dynamic Range	3D DNR
Compression Standard
Video Compression	H.264 / MJ PEG
H.264 Type	Main Profile
Bit Rate	32 Kbps ~ 8 Mbps
Dual Stream	Support
Max. Resolution	1920 × 1080
Frame Rate	60 Hz: 30fps (1920 ×1080), 30fps (1280×960) , 30fps (1280×720)
	50 Hz: 25fps (1920 ×1080), 25fps (1280 ×960), 25fps (1280×720)
Image Settings	Rotate Mode, S aturation, Brightnes s , Contras t, S harpnes s adjus table by client s oftware or web brows er
BLC	Support, zone configurable
ROI Codec	Support
Network
Network Storage	NAS (Support NFS,SMB/CIFS)
Detection	Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis
Alarm Trigger	Tamper ing alarm, Network disconnect , IP address conflict, Storage exception
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,
	UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General	One-key reset, Anti-Flicker, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
Standard	ONVIF (PROFILE S , PROFILE G), PS IA, CGI, IS API
Interface
Communication Interface	1 RJ45 10 M / 100 M Ethernet interface
Reset	Yes
On-board Storage	Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Wi-Fi Specification
Wireles s Standards	IEEE802.11b, 802.11g, 802.11n
Wireless Standards Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	20/40MHz Support
Protocols	802.11b: CCK, QPSK, BPSK
	802.11g/n: OFDM
Security	64 /128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rates	11b: 11Mbps/11g: 54Mbps/11n: up to 150Mbps
Wireless Range	50m(depend on environment)
General
Working Temperature	-22 °F ~ 140 °F(-30 °C ~ 60 °C )
/Humidity	Humidity 95% or less (non-condensing)
Power Supply	DC12V±10% / PoE(802.3af)
Power Consumption	Max. 7W
Material	Front Cover: Plastic; Back Cover&Bracket: Metal
IR Range	Up to 100ft(30m)
Weather proof rating	IP66
Dimension	2.4” × 3.0” × 5.5”(60.5 x 76.9 x 139.2mm)
Weight	1.1lbs(500g)
