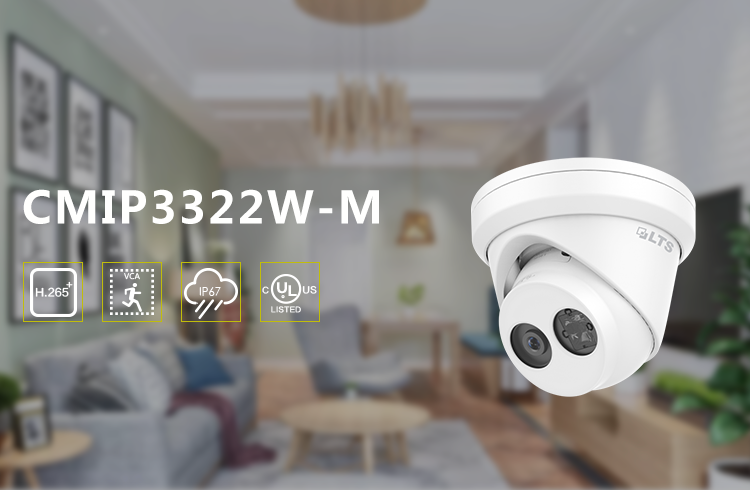

LTCMIP3322W-M, Platinum Turret Network IP Camera, 2MP, 4mm, Matrix IR 2.0, True WDR, SD card slot
Price Sign In For Price
Promotion Sign In For Promotion
Membership Level
Get Points after Purchase
Member(your level)
$3.00
Camera Style
Camera Style
Turret
Resolution
Resolution
2MP
Quantity
Office
TX - Dallas* (your office)
0 pcs
TX - Houston
0 pcs
NJ - Mt Laurel*
0 pcs
AZ - Phoenix
0 pcs
CA - Los Angeles*
6 pcs
- New List
No List
TX - Dallas*
TX - Houston
NJ - Mt Laurel*
AZ - Phoenix
CA - Los Angeles*
- 2MP High Definition, Up to 1920x1080@30fps
- 4mm Fixed Lens
- Matrix IR 2.0, IR Range up to 100 feet
- H.265, H.265+, H.264, H.264+ Ready
- True WDR 120dB
- IP67
- MicroSD Slot up to 128GB
- DC 12V, PoE

Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Speed | 1/3 s to 1/10,000 s |
Lens | 4mm |
Lens Mount | M12 |
Day & Night | IR cut filter with auto switch |
DNR | 3D DNR |
Wide Dynamic Range | True WDR 120dB |
Angle Adjustment | Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360° |
Compression Standard | |
Video Compression | Main stream: H.265/ H.264 |
Sub stream: H.265/H.264/ MJPEG | |
Third stream: H.265/ H.264 | |
H.265 Type | Main Profile |
Video Bit Rate | 32 Kbps ~ 16 Mbps |
Dual Stream | Support |
Image | |
Max. Resolution | 2560×1920 |
Main Stream | 60Hz: 20fps (2560×1920), 30fps (2048x1536), 30fps(1920×1080), 30fps(1280×720) |
50Hz: 20fps (2560×1920), 25fps (2048x1536), 25fps(1920×1080), 25fps(1280×720) | |
Sub Stream | 60Hz: 30fps (352×240, 640x480) 50Hz: 25fps (352×288, 640x480) |
Others | Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask |
Network | |
Network Storage | NAS (Support NFS,SMB/CIFS), ANR |
Alarm Trigger | Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted |
Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
General | Password Protection, IP Address Filtering, Anonymous Access, Watermark |
Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
Interface | |
Communication Interface | 1 RJ45 10M/100M Ethernet port |
Reset | Yes |
General | |
Working Temperature | -22 °F ~ 140 °F (-30 °C ~ 60 °C) |
/Humidity | Humidity 95% or less (non-condensing) |
Power Supply | DC 12V ± 10%, PoE (802.3af) |
Power Consumption | Max. 5.5W (Max. 7.5W with ICR on) |
IR Range | Up to 100ft |
Weather Proof Ratings | IP67 |
Dimensions | 5.01″ × 3.78″ (Φ 127.3 × 95.9 mm) |
Weight | 1.4 lb. (620 g) |
