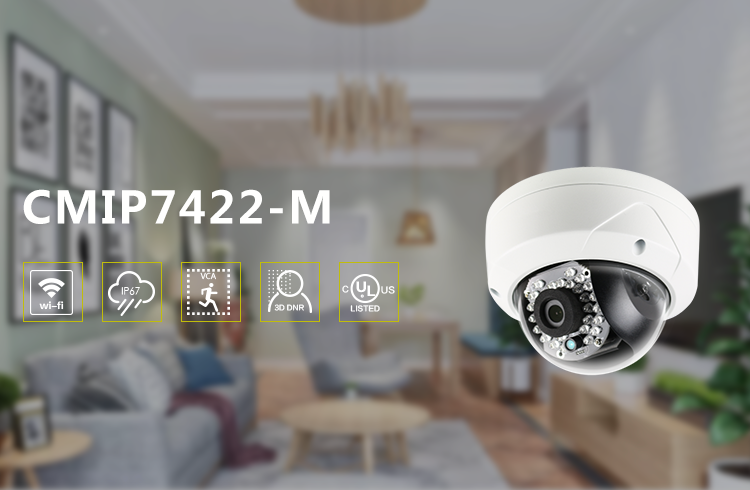

LTCMIP7422-M, Platinum Fixed Lens Dome IP Camera, 2MP, 4mm, SD card slot

Price Sign In For Price

Promotion Sign In For Promotion

Membership Level

Get Points after Purchase

Camera Style

Dome

Resolution

2MP

Quantity

Office

Inventory

Camera
Image Sensor	1/2.8” sensor
Min. Illumination	0.05 lux@F2.0, AGC ON
	0 lux with IR
Shutter Speed	1/3s (1/4s) ~ 1/100,000s
Lens	4mm@F2.0
	Angle of view: 79°
Lens Mount	M12
Angle adjustment	Pan: 0° ~ 355°, tilt: 0° ~ 65°
Day & Night	ICR
Digital Noise Reduction	3D DNR
Wide Dynamic Range	Digital WDR
Compression Standard
Video Compression	H.264 / MJPEG
H.264 codec profile	Main profile
Bit Rate	32 Kbps ~ 8 Mbps
Dual stream	Yes
Max. Resolution	1920 × 1080
Frame Rate	60Hz: 30fps (1920 × 1080), 30fps (1280 x 960), 30fps (1280 x 720)
	50Hz: 25fps (1920 × 1080), 25fps (1280 x 960), 25fps (1280 x 720)
Image Settings	Saturation, brightness, contrast adjustable through client software or web browser
BLC	Yes,zone configurable
Network
Network Storage	NAS
Alarm Trigger	Motion detection, tampering alarm
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
System compatibility	ONVIF, PSIA, CGI
General functionalities	User authentication, watermark
Interface
Communication Interface	1 RJ45 10M / 100M ethernet port
General
Working Temperature	-22°F ~ 140°F(-30°C ~ 60°C )
/Humidity	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 10%, PoE (802.3af)
Power Consumption	Max. 5W (max. 7W with ICR on)
Impact protection	IEC60068-2-75Eh, 50J; EN50102, up to IK10
Ingress Protection Level	IP66
IR Range	100ft(30m)
Dimension	Φ4.4”x3.2”(Φ111.0 × 82.4 mm )
Weight	1.1 lbs(500g)
