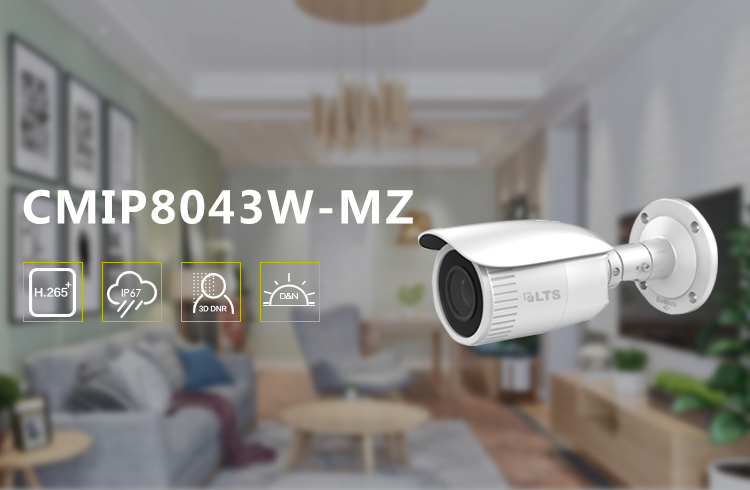

LTCMIP8043W-MZ, Platinum VF Motorized Bullet IP Camera, 4MP, 2.8-12 mm, True WDR, SD card slot
SKU: LTCMIP8043W-MZ
Promotion Sign In For Promotion
Price Sign In For Price
Bullet
4MP
Add to My List
- Create a list
- 4MP High Definition
- Up to 2560x1440@20fps
- 2.8-12mm Varifocal Motorized Lens
- IR Range up to 100 feet
Advanced Compression H.265/H.265+
- True WDR 120dB
- IP67
- DC 12V, PoE
- Metal Housing
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | 0 .018Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s, support slow shutter |
| Lens | 2.8 to 12 mm, Horizontal view: 98° to 28°, Vertical view: 51° to 16°, Diagonal view: 115° to 32° |
| Lens Mount | Φ14 |
| Day & Night | IR cut filter |
| DNR | 3D DNR |
| Wide Dynamic Range | True WDR 120dB |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Compression Standard | |
| Video Compression | Main stream: H. 265/H.264 |
| Sub stream: H.265/H. 264/MJPEG | |
| H.264 / H.264 Zip+ Type | Base Profile / Main Profile / High Profile / Main Stream Supports |
| H.265 / H.265+ Type | Main Profile / Main Stream Support |
| Video Bit Rate | 32 Kbps ~ 8 Mbps |
| Image | |
| Max. Resolution | 2560 × 1440 |
| Main Stream | 50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| 60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720) | |
| Sub Stream | 50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240) 60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240) |
| Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| ROI | 1 fixed region for main stream and sub-stream |
| Day/Night Switch | Auto / Scheduled |
| Network | |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| Simultaneous Live View | Up to 6 channels |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M Ethernet port |
| General | |
| Working Temperature | -22°F ~ +140°F (-30°C ~ 60°C) |
| /Humidity | Humidity 95% or less (non-condensing) |
| Power Supply | DC 12V ± 10%, PoE (802.3af) |
| Power Consumption | Max. 11W |
| IR Range | Approx. 100ft (30 meters) |
| Weather Proof Ratings | IP67 |
| Dimensions | 4.1" × 4.1" × 5.7" (105 mm × 105 mm × 145 mm) |
| Weight | 2.3lb. (1035g) |
