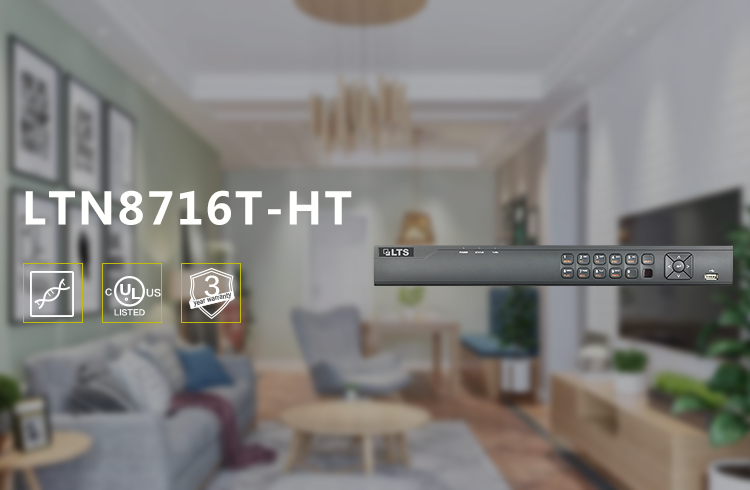

LTN8716T-HT, 16+16 Channel Hybrid Network Video Recorder, 1U, 12TB

Price Sign In For Price

Promotion Sign In For Promotion

Membership Level

Get Points after Purchase

Number of Camera Channels

16+16CH

Max. Storage Capacity

12TB

Quantity

Office

Inventory

Video/Audio Input
Video/Audio Input	H.264 Zip+ / H.264
Video Input	16-CH
	BNC interface (1.0 Vp-p, 75 Ω), supporting coaxition
Supported HDTVI input	3MP, 1080p/25Hz, 1080p/30Hz, 720p/60Hz, 720p/50Hz, 720p/30Hz, 720p/25Hz
Supported AHD input	720p/30Hz, 720p/25Hz
CVBS input	Support
IP input	16-CH (up to 5MP))
Audio compression	G.711u
Audio input	4-ch, RCA (2.0 Vp-p, 1 kΩ)
Two-way audio input	1-ch, RCA (2.0 Vp-p, 1 kΩ)
Video/Audio Output
HDMI/ VGA output	1 -ch , 19 20 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
Encoding resolution	3MP@15fps, 1080p/720p/WD1/4CIF/VGA/CIF
CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704×576, NTSC: 704×480
Frame rate	Main stream: 30fps(N)/25fps(P)
	Sub-stream:WD1/4CIF@12fps (non-real-time); CIF/QVGA/QCI F ( real time)
Video bit rate	32 Kbps-10 M bps
Audio output	1-ch, RCA (Linear, 1 kΩ)
Audio bit rate	64 Kbps
Dual- stream	Support
Stream type	Video, Video & Audio
Synchronous playback	16ch
Network
Remote connections	140Mbps
Network protocols	TCP/IP, PPPoE, DHCP, PT Cloud, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk
SATA	2 SATA
Capacity	Up to 6TB capacity for each disk
External Interface
Network Interface	1, RJ45 10M / 100Mself-adapt ive Ethernet interface
Serial Interface	1; RS-485 serial interface, half-duplex
USB Port	2 × USB2.0
Alarm In/Out	16 In/4 Out
General
Power Supply	DC 12V
Consumption	≤ 40W
Working Temperature	-10 °C ~ +55 °C(14°F - 131°F)
Working Humidity	10% - 90%
Chassis	1U chassis
Dimension	380 × 320 × 48 mm (14.9 × 12.6 × 1.9 inch)
Weight	≤2 Kg (4.4 lb)
