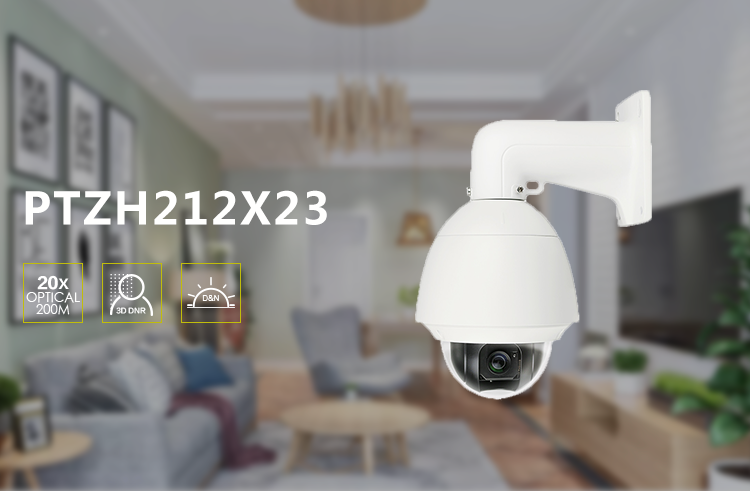

LTPTZH212X23, Platinum HD-TVI PTZ High Speed Dome Camera, 2.1MP,4-92mm, 23xOptical Zoom
Price Sign In For Price
Promotion Sign In For Promotion
Membership Level
Price after Using Points
Get Points after Purchase
Camera Style
Camera Style
Dome
Resolution
Resolution
2MP
Quantity
Office
- New List
No List
- 2.1MP High Definition
- 1920X1080P@30fps
- 23X Optical Zoom
- Self-adaptive, Pelco-P, Pelco-D
- 3D Privacy Masking
- True Day/Night, 3D DNR, DWDR
- AC 24V, IP66
- Indoor/Outdoor
- 4"(Φ)

Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Min. Illumination | Color: 0.05Lux@(F1.6, AGC ON); B/W: 0.001Lux@(F1.6, AGC ON) |
Max. Image Resolution | 1920x1080 |
White Balance | Auto/Manual/ATW/Indoor/Outdoor |
AGC | Auto / Manual |
S / N Ratio | ≥ 50dB |
3D DNR | Support |
DWDR | Support |
Shutter Time | 1/1~ 1/10,000s |
Day and Night | IR Cut Filter |
Privacy Mask | 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
Lens | |
Focal Length | 4-92mm, 23x |
Digital Zoom | 16x |
Zoom Speed | Approx.3s (Optical Wide-Tele) |
Angle of View | 49 - 2.2 degree (Wide-Tele) |
Min. Working Distance | 10 - 1000mm (Wide-Tele) |
Aperture Range | F1.6 ~ F3.5 |
Focus Mode | Auto / Semiautomatic / Manual |
Pan and Tilt | |
Pan Range | Pan: 360° endless |
Pan Speed | Pan Manual Speed: 0.1° ~ 160°/s, Pan Preset Speed: 160° |
Tilt Range | 0° - 90° (Auto Flip) |
Tilt Speed | Tilt Manual Speed: 0.1° - 120°/s, Tilt Preset Speed: 120°/s |
Number of Preset | 256 |
Patrol | 8 Patrols, Up to 32 Presets Per Patrol |
Pattern | 4 Patterns, with the total recording time not less than 10 minutes |
Park Action | Preset/Patrol/Pattern/Pan scan/Tilt scan/Random Scan/Frame scan/Panorama scan |
RS-485 Communication Diagnosis | Support |
Input/Output | |
HD Output | 1 1080P output, 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC |
CVBS Output | 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC |
Alarm Input | 2 |
Alarm Output | 1 |
RS-485 Interface | Half-duplex mode;Self-adaptive Pelco-P, Pelco-D protocol |
Infrared | |
IR Intensity | Automatically adjusted, depending on the zoom ratio |
General | |
Power | 24V AC, Max. 12W |
Working Temperature/ Humidity | -30 °C-65°C(-22°F-149°F)/90% or less |
Impact Protection | IK08 |
Dimensions | Φ7.3”×13.0”(Φ185×330mm) |
Weight | 8.8lbs(4.0kg) |
