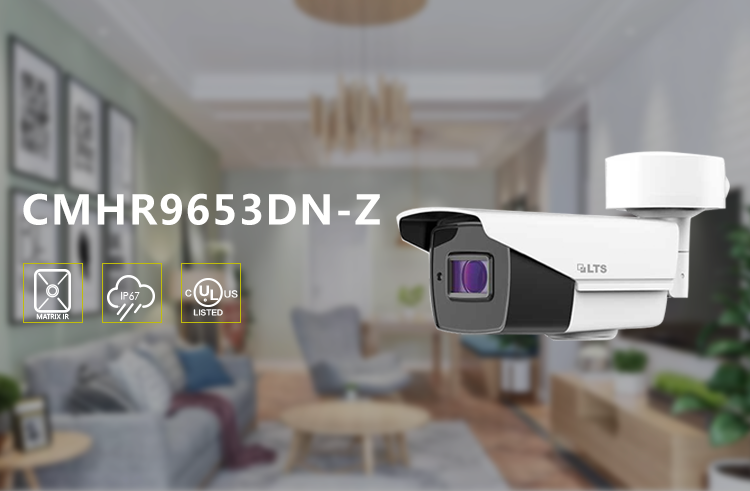

LTCMHR9653DN-Z, Bullet HD-TVI Varifocal Motorized Lens Camera, 5MP, 2.8-12mm, Ture WDR, Matrix IR 2.0, Dual Voltage, Low IR
Price Sign In For Price
Promotion Sign In For Promotion
Membership Level
Get Points after Purchase
Member(your level)
$3.97
Camera Style
Camera Style
Bullet
Resolution
Resolution
5MP
Quantity
Office
TX - Dallas* (your office)
0 pcs
TX - Houston
0 pcs
NJ - Mt Laurel*
0 pcs
AZ - Phoenix
0 pcs
CA - Los Angeles*
0 pcs
- New List
No List
TX - Dallas*
TX - Houston
NJ - Mt Laurel*
AZ - Phoenix
CA - Los Angeles*
- High Definition Bullet 5MP HD-TVI Camera
- 2.8-12mm Varifocal Motorized Lens
- 2560x1944@20fps
- 0.01 Lux, Smart IR
- 6 Matrix IR 2.0 LED up to 175ft
- UTC Control to OSD Menu
- DC 12V, AC 24V
- IP67
- Junction Box Included
CAMERA | |
Image Sensor | 1/2 .7" CMOS |
Signal System | NTSC/PAL |
Effective Pixels | 2560(H)*1944(V) |
Min. Illumination | 0.01Lux, 0 Lux with IR |
Lens | 2.8-12mm Motorized Varifocal Lens, Angle of View: 90°~28° |
Shutter Speed | 1/30 (1/25) to 1/50,000 s |
Day & Night | ICR |
Synchronization | Internal |
Video Frame Rate | 2560 x 1944@20fps |
HD Video Output | 1 HD-TVI Output |
S/N Ratio | More than 62dB |
MENU | |
AGC | Support |
D/N Mode | Color/ BW/ SMART |
White Balance | ATW/ MWB |
BLC | Support |
Function | True WDR, DNR, Mirror, SMART IR |
GENERAL | |
Working Temperature | -40 °F ~ 140 °F (-40 °C ~ 60 °C) |
/Humidity | Humidity 90% or less (non-condensing) |
Power Supply | DC 12V, AC 24V |
Power Consumption | Max. 9W |
Weather Proof Ratings | IP66 |
IR Range | Up to 175ft |
Dimensions | 3.6" x 3.5" x 10.6" (92.0 x 89.0 x 269.6mm) |
Weight | 2.0lbs (900g) |
