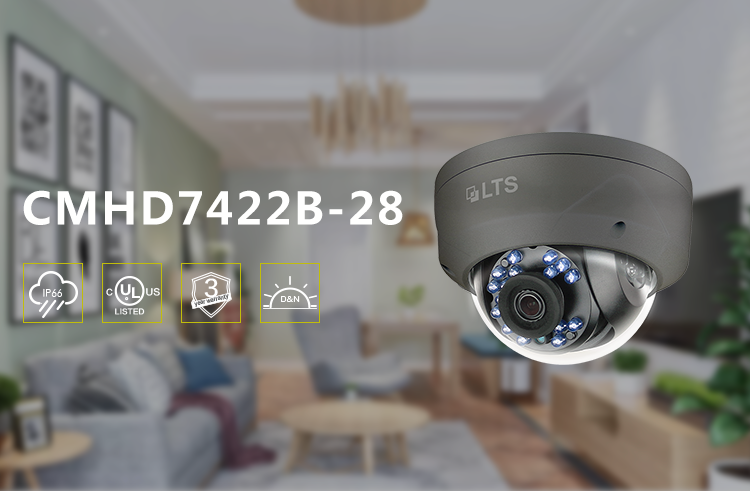

LTCMHD7422B-28, Platinum HD-TVI Dome Camera, 2MP, 2.8mm, Black
Price Sign In For Price
Promotion Sign In For Promotion
Membership Level
Price after Using Points
Get Points after Purchase
Resolution
Resolution
2MP
Camera Style
Camera Style
Dome
Quantity
Office
- New List
No List
- 2.1MP Full HD 1080P
- 2.8mm Fixed Lens
- 1920x1080P@30fps
- 18 IR LEDs up to 65ft, Smart IR
- IP66, IK10
- 3-Axis Easy Installation
| Camera | |
| Image Sensor |
1
/ 2.7" Sensor
|
| Signal System |
NTSC/PAL(Euro
Version)
|
| Effective Pixels | 1930(H)*1088(V) |
| Min. Illumination | 0.1 Lux, 0 Lux with IR |
| Shutter Speed | 1/30(1/25) s to 1/50,000 s |
| Lens | 2.8 mm |
| Day & Night | Angle of View: 105.8° |
| Synchronization | Internal synchronization |
| Video Frame Rate | 1080p@30fps/1080p@25fps |
| HD Video Output | 1 HD-TVI output |
| S/N Ratio | More than 52dB |
| Menu | |
| Camera ID | On/Off (0-255) |
| AGC | Support |
| D/N Mode | Color/BW/Auto/EXT |
| White Balance | Auto/User/Push/8000K/6000K/4200K/3200K/HOLD |
| Privacy Mask | On/Off, maximum 2 zones |
| Motion Detection | On/Off |
| BLC | Support |
| Anti-Flicker | On/Off |
| Language | English/Chinese |
| Function | Mirror |
| General | |
| Working Temperature | -40° F - 140° F (-40° C - 60° C) |
| /Humidity | Humidity 80% or less (non-condensing) |
| Power Supply | DC 12V |
| Power Consumption | Max. 3W |
| IR Range | Up to 65ft(20m) |
| Dimensions |
φ111×82.4
mm(φ4.37”×3.24”)
|
| Weight | 1.2lb (550g) |
