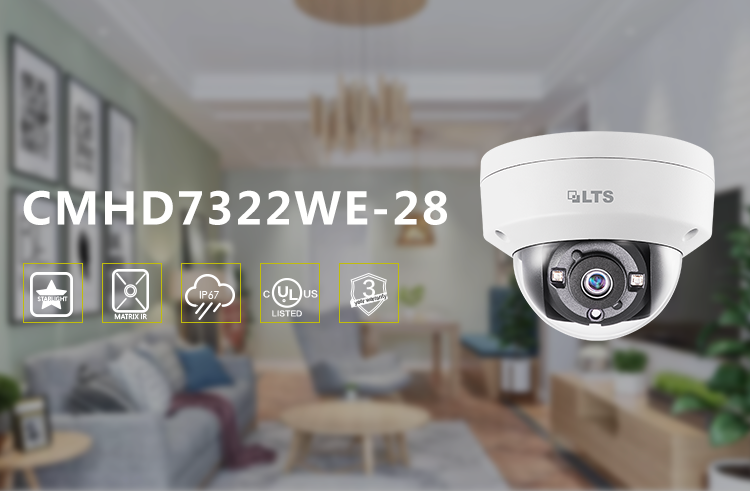

LTCMHD7322WE-28, Eco-Platinum Dome HD-TVI Camera, 2.1MP, 2.8mm, True WDR, Matrix IR 2.0
Price Sign In For Price
Promotion Sign In For Promotion
Membership Level
Get Points after Purchase
Camera Style
Camera Style
Dome
Resolution
Resolution
2.1MP
Quantity
Office
- New List
No List
- High Definition Dome 2.1MP HD-TVI Camera
- 2.8mm Fixed Lens
- 1920x1080@30fps
- 0.005 Lux@F2.0
- True WDR 120dB
- IP67
- 2 Matrix IR 2.0 LED up to 65ft
- IK7 Vandal-Proof Dome
- 3-Axis Easy Installation
- UTC Control to OSD Menu
- Smart IR, DC 12V
| Camera | |
| Image Sensor | 1/3" CMOS |
| Signal System | NTSC/PAL |
| Effective Pixels | 1920(H)*1080(V) |
| Min. Illumination | 0.005 Lux , 0 Lux with IR |
| Shutter Speed | 1/30 (1/25)s to 1/50,000 s |
| Lens | 2.8mm, Angle of View: 103° |
| Day & Night | ICR |
| Synchronization | Internal |
| Video Frame Rate | 1080p@30fps/1080p@25fps |
| HD Video Output | 1 HD-TVI Output |
| S/N Ratio | More than 62dB |
| Menu | |
| AGC | Support |
| D/N Mode | Color/BW/Smart |
| White Balance | ATW/MWB |
| BLC | Support |
| Function | True WDR, DNR, Mirror, SMART IR |
| General | |
| Working Temperature | -40 °F ~ 140 °F (-40 °C ~ 60 °C) |
| /Humidity | Humidity 90% or less (non-condensing) |
| Power Supply | DC 12V |
| Power Consumption | Max. 3.5W |
| Weather Proof Ratings | IP67 |
| IR Range | Up to 65ft (20m) |
| Impact Protection | IK10 |
| Dimensions | 4.4 ”×3.3” (111.0×82.5 mm) |
| Weight | 0.8lb(350g) |
