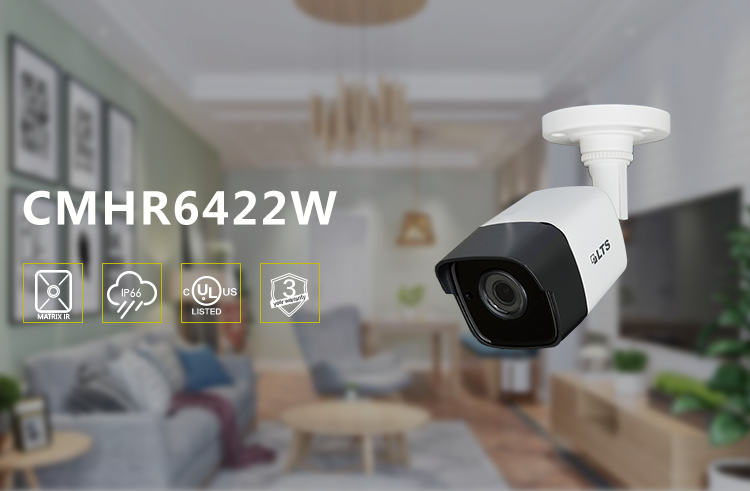

LTCMHR6422W, Platinum Fixed Lens Bullet HD-TVI Camera, 2.1MP, 3.6mm, True WDR
Price Sign In For Price
Promotion Sign In For Promotion
Membership Level
Get Points after Purchase
Camera Style
Camera Style
Bullet
Resolution
Resolution
2MP
Quantity
Office
- New List
No List
- 2.1MP High Definition
- 1920x1080P@30fps
- 3.6mm Fixed Lens
- True WDR 120dB
- 2 Matrix IR 2.0 up to 65ft (20m)
- DC 12V
- OSD Menu via UTC technology with Platinum TVI DVR
- IP66 weatherproof
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Signal System | NTSC/PAL |
| Effective Pixels | 1928(H)*1088(V) |
| Min. Illumination | 0.01 Lux, 0 Lux with IR |
| Shutter Speed | 1/30 (1/25)s to 1/50,000s |
| Lens | 3.6mm, FOV: 82.2° |
| Day & Night | ICR |
| Synchronization | Internal |
| Video Frame Rate | 1080p@30fps/ 1080p@25fps |
| HD Video Output/span> | 1 Analog HD Output |
| S/N Ratio | More than 62dB |
| Menu | |
| AGC | Support |
| D/N Mode | Color/BW/Smart |
| White Balance | ATW/MWB |
| BLC | Support |
| Function | True WDR, DNR, Mirror, SMART IR |
| General | |
| Working Temperature/ Humidity | -40 °F - 140 °F (-40 °C - 60° C) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | DC 12V |
| Power Consumption | Max 5W |
| Weather Proof Ratings | IP66 |
| IR Range | Up to 65ft (20m) |
| Dimension | 2.3” × 2.2” × 6.1" (58.5×55.5×153.6mm) |
| Weight | 0.8lb (370g) |
