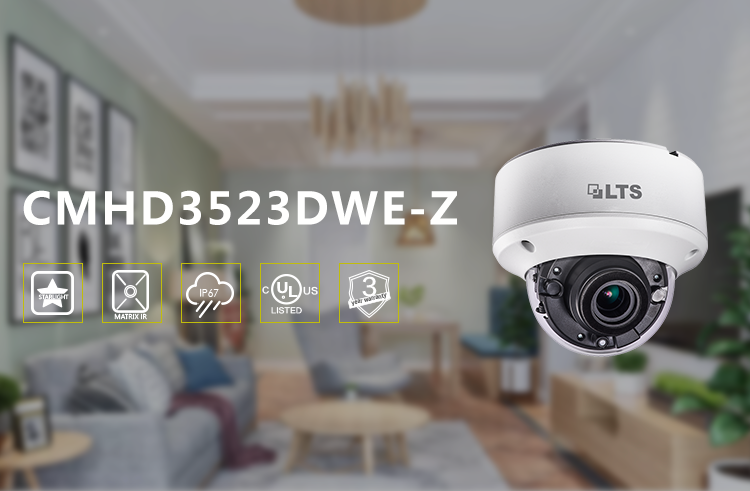

LTCMHD3523DWE-Z, Platinum Starlight Varifocal Motorized Lens HD-TVI Dome Camera, 2.1MP, 2.8-12mm, True WDR, Dual Voltage
Price Sign In For Price
Promotion Sign In For Promotion
Membership Level
Get Points after Purchase
Member(your level)
$2.54
Camera Style
Camera Style
Dome
Resolution
Resolution
2.1MP
Quantity
Office
TX - Dallas* (your office)
0 pcs
TX - Houston
0 pcs
NJ - Mt Laurel*
0 pcs
AZ - Phoenix
0 pcs
CA - Los Angeles*
0 pcs
- New List
No List
TX - Dallas*
TX - Houston
NJ - Mt Laurel*
AZ - Phoenix
CA - Los Angeles*
- High Definition Dome 2.1MP HD-TVI Camera
- 2.8-12mm Varifocal Motorized Lens
- Auto Focus
- 1920x1080@30fps
- 0.005 Lux@F2.0
- 2 Matrix IR 2.0 LED up to 131ft
- UTC Control to OSD Menu
- IK10 Vandal-Proof Dome
- Smart IR
- 3-Axis Easy Installation
- IP67
- DC 12V, AC 24V
- CVBS Output
Camera | |
Image Sensor | 1/2.7" CMOS |
Signal System | NTSC/PAL |
Effective Pixels | 1928(H)*1088(V) |
Min. Illumination | 0.01 Lux, 0 Lux with IR |
Shutter Speed | 1/30 (1/25)s to 1/50,000s |
Lens | 2.8-12mm Motorized Varifocal Lens |
Angle of View: 35.1° -114.5° | |
Day & Night | ICR |
Synchronization | Internal |
Video Frame Rate | 1080p@30fps/ 1080p@25fps |
HD Video Output/span> | 1 Analog HD Output |
S/N Ratio | More than 62dB |
Menu | |
AGC | Support |
D/N Mode | Color/BW/Smart |
White Balance | ATW/MWB |
Function | True WDR, DNR, Mirror, SMART IR |
General | |
Working Temperature/ Humidity | -40 °F - 140 °F (-40 °C - 60° C) |
Humidity 90% or less (non-condensing) | |
Power Supply | DC 12V, AC 24V |
Power Consumption | Max 6.5W |
Weather Proof Ratings | IP67 |
IR Range | Up to 131ft(40m) |
Impact Protection | IK10 |
Dimension | 5.7” × 4.9” (145.2×124.1mm) |
Weight | 3.6lb (1600g) |
