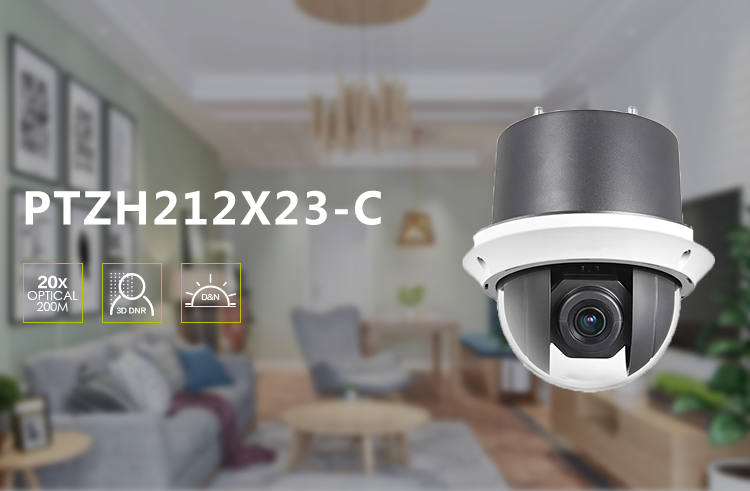

LTPTZH212X23-C,Platinum HD-TVI PTZ High Speed Dome Camera,2.1MP,4-92mm,23xOptical Zoom,In Ceiling

- 2.1MP High Definition
- 1920X1080P@30fps
- 4" dome in-ceiling and flush mount
- 4-92mm, 23x Optical Zoom
- 3D DNR, DWDR, 3D Privacy Masking
- AC 24V
- 4"(Φ)
- CVBS Output
- Indoor Only

Add to My List

Best Sellers

LTCMHD3423D, eco - Platinum HD-TVI Vandal Proof Dome Camera, 2.1MP, 2.8-12mm, Dual Voltage

Add to Cart

LTCMHD3423DW, Platinum HD-TVI Vandal Proof Dome Camera, 2.1MP, 2.8-12mm, True WDR, Dual Voltage

Add to Cart

LTCMHT1322WE-28, Platinum Starlight Fixed Lens Turret HD-TVI Camera, 2MP, 2.8mm, True WDR

Out of Stock

LTCMHT1352N-28, Platinum HD-TVI Turret Camera, 5MP, 2.8mm, Matrix IR 2.0, Low IR

Out of Stock

LTCMHT1422W-28, Platinum HD-TVI Turret Camera, 2MP, 2.8mm, True WDR

Add to Cart

LTCMHT1722W-28, Platinum Fixed Lens Turret HD-TVI Camera, 2.1MP, 2.8mm, True WDR

Out of Stock

LTCMHT1722WE-28, Platinum Starlight Turret HD-TVI Camera, 2.1MP, 2.8mm, True WDR, Matrix IR 2.0

Out of Stock

LTCMHT1752-28, Platinum Starlight Turret HD-TVI Camera, 5MP, 2.8mm, Matrix IR 2.0

Out of Stock

Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.05Lux@(F1.6, AGC ON); B/W: 0.001Lux@(F1.6, AGC ON)
Max. Image Resolution	1920x1080
White Balance	Auto/Manual/ATW/Indoor/Outdoor
AGC	Auto / Manual
S / N Ratio	≥ 50dB
3D DNR	Support
DWDR	Support
Shutter Time	1/1~ 1/10,000s
Day and Night	IR Cut Filter
Privacy Mask	8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Lens
Focal Length	4-92mm, 23x
Digital Zoom	16x
Zoom Speed	Approx.3s (Optical Wide-Tele)
Angle of View	49 - 2.2 degree (Wide-Tele)
Min. Working Distance	10 - 1000mm (Wide-Tele)
Aperture Range	F1.6 ~ F3.5
Focus Mode	Auto / Semiautomatic / Manual
Pan and Tilt
Pan Range	Pan: 360° endless
Pan Speed	Pan Manual Speed: 0.1° ~ 160°/s, Pan Preset Speed: 160°
Tilt Range	0° - 90° (Auto Flip)
Tilt Speed	Tilt Manual Speed: 0.1° - 120°/s, Tilt Preset Speed: 120°/s
Number of Preset	256
Patrol	8 Patrols, Up to 32 Presets Per Patrol
Pattern	4 Patterns, with the total recording time not less than 10 minutes
Park Action	Preset/Patrol/Pattern/Pan scan/Tilt scan/Random Scan/Frame scan/Panorama scan
RS-485 Communication Diagnosis	Support
Input/Output
HD Output	1 1080P output, 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
CVBS Output	1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Alarm Input	2
Alarm Output	1
RS-485 Interface	Half-duplex mode;Self-adaptive Pelco-P, Pelco-D protocol
Infrared
IR Distance	492ft (150m)
IR Intensity	Automatically adjusted, depending on the zoom ratio
General
Power	24V AC, Max. 12W
Working Temperature/ Humidity	-30 °C-65°C(-22°F-149°F)/90% or less
Impact Protection	IK08
Dimensions	Φ7.3”×13.0”(Φ185×330mm)
Weight	8.8lbs(4.0kg)
