HC-4EB-F28-SBL, Unisight HDCVI IR Eyeball Camera, 4MP, 2.8mm Empower series

Price Sign In For Price

Promotion Sign In For Promotion

Membership Level

Get Points after Purchase

Member(your level)

$8.09

Resolution

4MP

Camera Style

Turret

Quantity

Office

Inventory

For shipping order, if inventory is not enough in your office, we will ship from backup office below if there is any.

TX - Dallas* (your office)

0 pcs

TX - Houston

0 pcs

NJ - Mt Laurel*

0 pcs

AZ - Phoenix

0 pcs

CA - Los Angeles*

0 pcs

No List

New List

TX - Dallas*

TX - Houston

NJ - Mt Laurel*

AZ - Phoenix

CA - Los Angeles*

- 4MP
- 2560 x 1440P@30fps
- 2.8mm Fixed Lens
- Color 0.03 lux, BW 0 lux
- IR Range up to 164ft
- CVI/ Analog

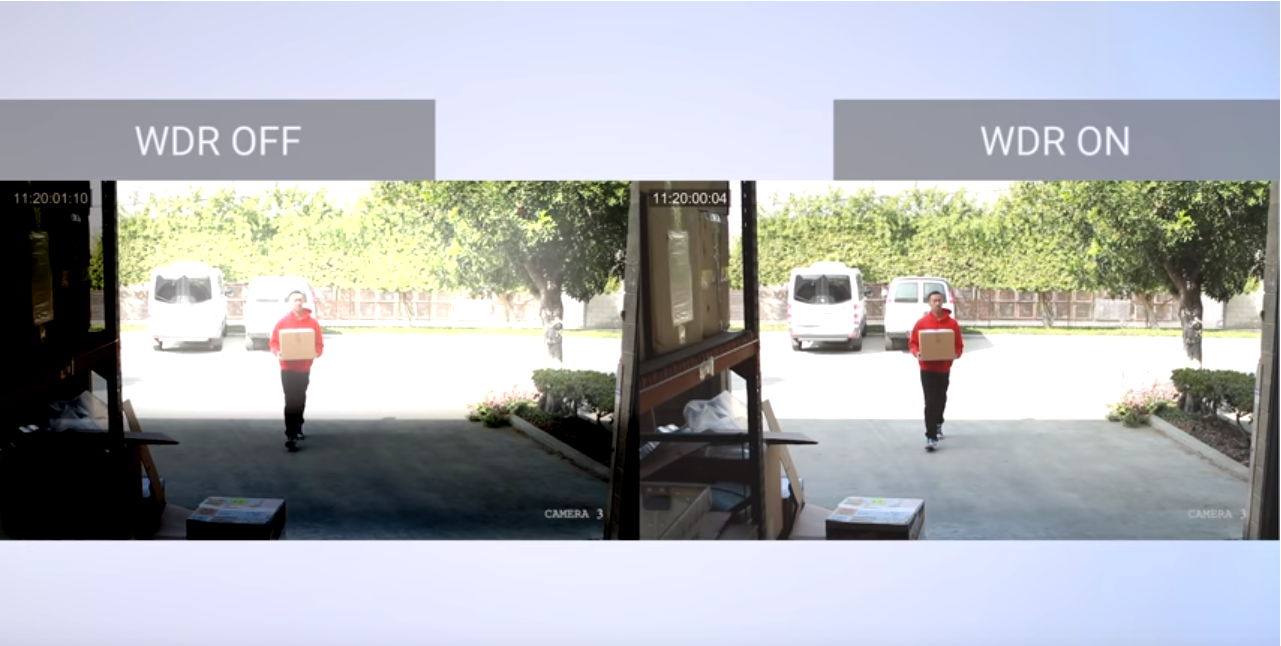

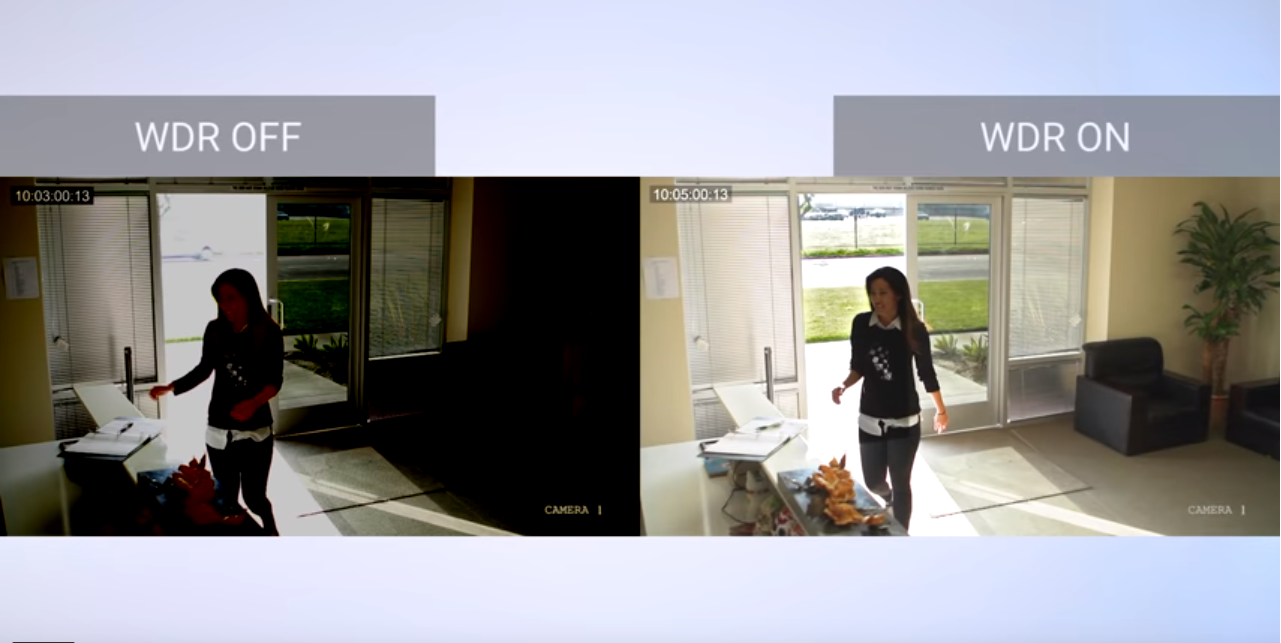

- DWDR, 2D DNR, BLC
- IP67
- DC 12V, Dual Video Switchable

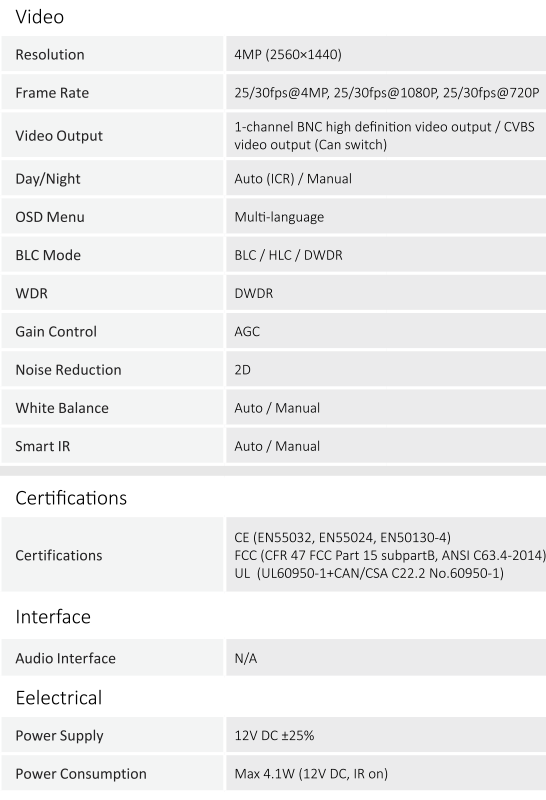

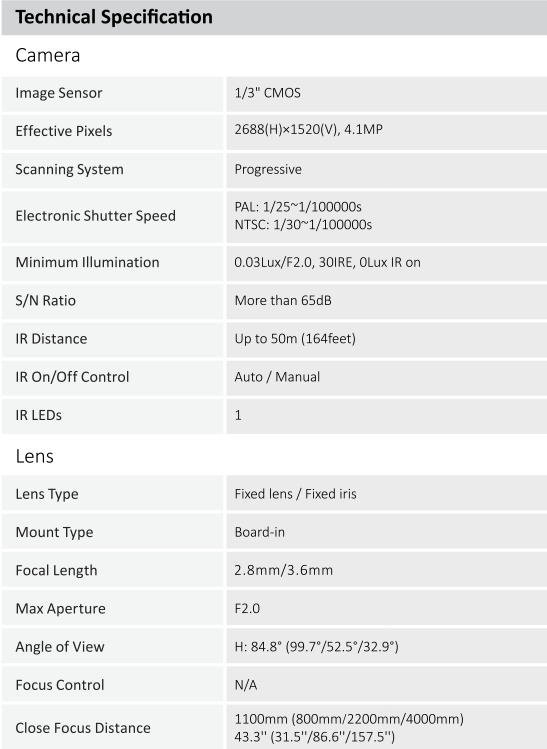

spec sheet

System Overview

Experience superior 4MP video and the simplicity of reusing existing coaxial infrastructure with HDover-coax. The Lite series 4MP HD-over-coax camera features a compact design and offers a high quality image with rich details at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high costperformance makes the camera an ideal choice for SMB solutions.

Functions

4 Signals over 1 Coaxial Cable

HD-over-Coax technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HD-over-Coax camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HD-over-Coax technology supports PoC for construction flexibility.

* Audio input is available for some models of HD-over-Coax cameras.

Long Distance Transmission

HD-over-Coax technology guarantees real-time transmission at long distance without any loss. It supports up to 800m(1080P)/1200m(720P) trans mission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP cable.*

*Actual results verified by real-scene testing in Unisight's test laboratory.

Simplicity

HD-over-Coax technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HD-over-Coax system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

Smart IR

The camera is designed with microcrystalline LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. The unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.

HD/SD Switchable

The camera supports switchable HD-over-coax high definition video output and CVBS standard definition video output. The two formats can be switched over through OSD menu or by PFM820(UTC controller). This feature makes the camera to be compatible with both HCVRs and existing analog DVRs and also facilitates debugging through analog testers.

Multi-language OSD

OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.

Protection

The camera's outstanding reliability is unsurpassed due to its rugged design The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments. Supporting ±25% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
