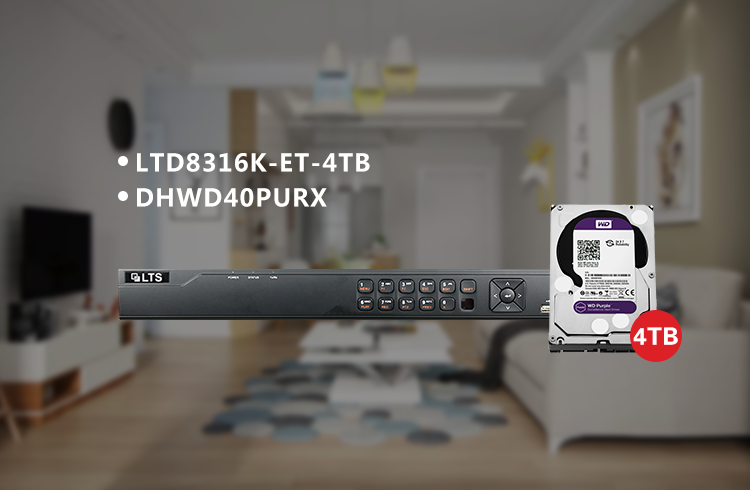

LTD8316K-ET-4TB, Professional Level 16 Channel HD-TVI DVR, 1U, SATA up to 16TB, 4TB Pre-Installed Storage

Price Sign In For Price

Promotion Sign In For Promotion

Membership Level

Get Points after Purchase

Number of Camera Channels

16CH

Max. Storage Capacity

16TB

HDD Included

4TB

Quantity

Office

Inventory

Model Name	LTD8316K-ET
Video Compression	H.265+
Audio Compression	G.711u
IP Video Input	2-ch, Up to 4 MP resolution, supports H.265+/H.265/H.264 Zip+/H.264 IP cameras
HD-TVI Input	3 MP, 1080p30,1080p25, 720p60, 720p50,720p30,720p25
	Note: The 3 MP signal input is only available for channel 1/2/3/4
Support	HDCVI, AHD, 1080p25, 1080p30, 720p25, 720p30
CVBS Input	Support
Simultaneous Playback	16CH
Audio Input	1-ch, RCA (2.0 Vp-p, 1 KΩ)
HDMI VGA Output	VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
	HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz,
	1280 × 720/60Hz, 1024 × 768/60Hz
Encoding Resolution	When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
	When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 kΩ), resolution: PAL: 704 × 576, NTSC: 704 × 480
USB interface	Front panel: 1 ×USB 2.0, Rear panel: 1 ×USB 3.0
Two Way Audio Input	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the1st audio input)
Capacity	2 SATA/ Up to 8TB capacity for each disk
Casing	1U
Power supply	12 VDC
Consumption	≤ 25W
Operating Temperature	-10 °C ~ +55 °C(14°F - 131°F)
Product Dimension	380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Product Weight	≤2 kg (4.4 lb)
