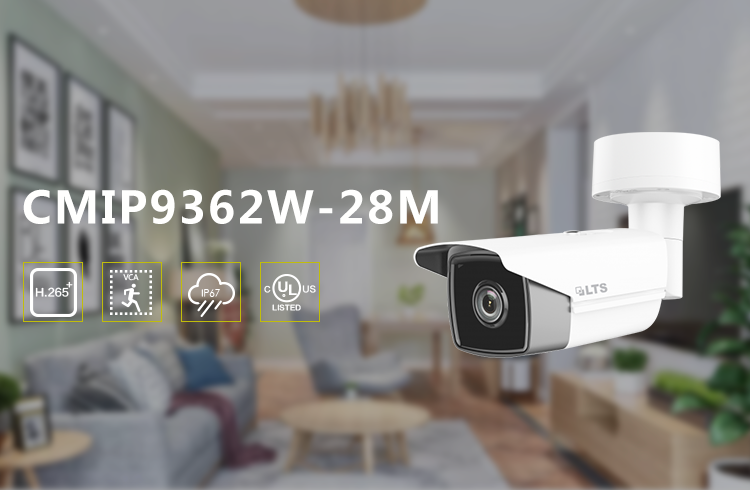

LTCMIP9362W-28M, Platinum Bullet Network IP Camera, 6MP, 2.8mm, True WDR, Matrix IR 2.0, SD card slot

Price Sign In For Price

Promotion Sign In For Promotion

Membership Level

Get Points after Purchase

Member(your level)

$2.82

Camera Style

Bullet

Resolution

6MP

Quantity

Office

Inventory

TX - Dallas* (your office)

0 pcs

TX - Houston

0 pcs

NJ - Mt Laurel*

0 pcs

AZ - Phoenix

0 pcs

CA - Los Angeles*

0 pcs

Camera
Image Sensor	1/2.9" Progressive Scan CMOS
Min. Illumination	Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Lens	2.8 mm: horizontal FOV:97°, vertical FOV: 63°, diagonal FOV: 120°
Lens Mount	M12
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	120dB
Compression Standard
Video Compression	Main stream: H.26 5/H.264
	Sub stream: H.265/H.26 4/MJPEG
	Third stream: H.26 5/H.264
H.264 Type	Main Profile / High Profile
H.264 Zip+	Support
H.265	Main Profile
H.265+	Support
Video Bit Rate	32 Kbps ~ 16 Mbps
Max. Resolution	3072 × 2048
Frame Rate	50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
	60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream	60Hz: 30fps (640 × 360, 352 × 240) 50Hz: 25fps (1280 ×720)
Third Stream	50Hz: 25fps (1280×720, 640×360, 352×288) / 352×288)
Behavior Analysis	Line crossing detection, intrusion detection
Face Detection	Yes
ROI	1 fixed region for main stream and sub-stream
Image Setting	Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Network
Network Storage	Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Simultaneous View	Up to 6 Channels
Interface
Communication Interface	1 RJ45 10M/100M Ethernet port
Reset	Yes
General
Working Temperature	-22 °F ~ 140°F (-30 °C ~ 60 °C)
/Humidity	Humidity 95% or less (non-condensing)
Power Supply	DC12V ± 25%, PoE (802.3af)
IR Range	Approx. 165ft (50 meters)
Weather Proof Ratings	IP67
Dimensions	Φ4.1″ × 11.8″ (Φ105 × 299.7 mm)
Weight	2.7lbs (1200 g)
