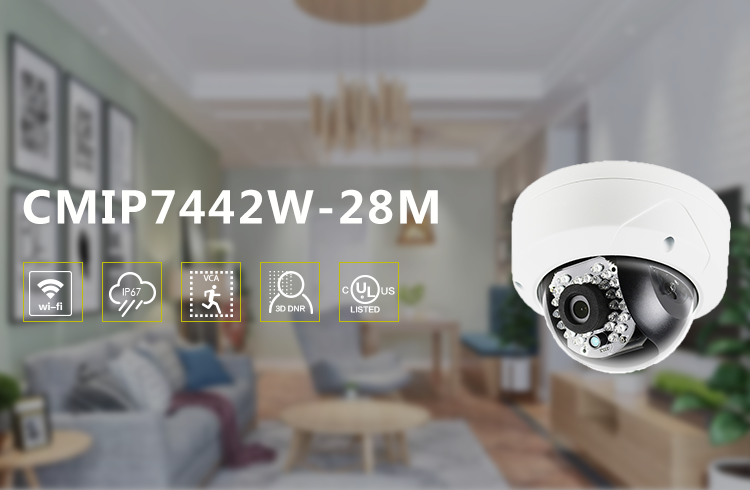

LTCMIP7442W-28M, Platinum Fixed Lens Dome Camera, 4.1MP, 2.8mm, True WDR, SD card slot
SKU: LTCMIP7442W-28M
You get 1340 reward points per unit after placing order
Promotion Sign In For Promotion
Price Sign In For Price
Use reward points to enjoy maxinum $13.92 discount per unit
10% OFF $300.00
Dome
4MP
Add to My List
- Create a list
- 4.1MP High Definition
- 1/3” CMOS
- 2688X1520P@20fps
- 2.8mm Fixed Lens
- 30 IR LEDs up to 100ft
- 3D DNR, WDR, BLC, VCA, 3-Axis
- Micro SD/SDHC/SDXC Card Slot
- Vandalproof, IP66
- Junction Box Sold Seperately
- DC 12V, PoE
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/10,000 s |
| Lens | 2.8mm, Angle of View: 106° |
| Lens Mount | M12 |
| Day & Night | IR cut filter with auto switch |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| Swivel | -90° ~ 9 0°, Tilt: 0° ~ 75° |
| Compression Standard | |
| Video Compression | H.264 / MJPEG/H.264 Zip+ |
| H.264 Type | Main Profile |
| Video Bit Rate | 32 Kbps ~ 8 Mbps |
| Dual Streams | Support |
| Image | |
| Max. Resolution | 2688×1520 |
| Frame Rate | 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) |
| 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) | |
| Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| BLC | Support, zone configurable |
| ROI Codec | Support |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General | One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access |
| Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M Ethernet port |
| On-Board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128GB |
| Reset | Yes |
| General | |
| Working Temperature | -22 ° F ~ 140 °F (-30 °C ~ 60 °C) |
| /Humidity | Humidity 95% or less (non-condensing) |
| Power Supply | DC12V ± 10%, PoE (802.3af) |
| Power Consumption | Max. 5W |
| IR Range | Approx. 100ft (30 meters) |
| Weather Proof Ratings | IP66 |
| Impact Protection | IK10 |
| Dimensions | Φ4.4” × 3.2” (Φ111×82.0mm) |
| Weight | 1.1 lbs (500g) |
