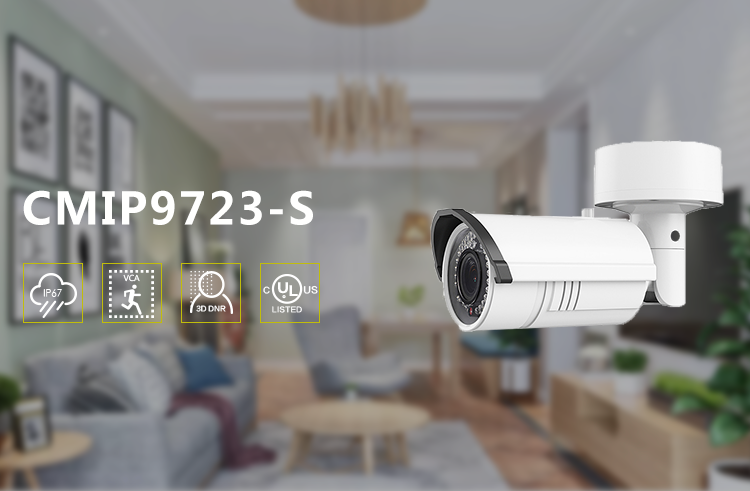

LTCMIP9723-S, Platinum Varifocal Bullet IP Camera,2.1MP,2.8-12mm,Audio/Alarm

Price Sign In For Price

Promotion Sign In For Promotion

Membership Level

Get Points after Purchase

Member(your level)

$0.00

Camera Style

Bullet

Resolution

2MP

Quantity

Office

Inventory

TX - Dallas* (your office)

0 pcs

TX - Houston

0 pcs

NJ - Mt Laurel*

0 pcs

AZ - Phoenix

0 pcs

CA - Los Angeles*

0 pcs

Camera
Image Sensor	1/3” sensor
Min. Illumination	0.014lux @(F1.4,AGC ON) 0 lux with IR
Shutter Speed	1/25s ~ 1/100,000s
Lens	2.8 ~ 12mm @ F1.4, Angle of view: 113°-33.8°
Lens mount	Φ14
Day & Night	ICR
ROI	Yes, up to 4 configurable areas
Digital Noise Reduction	3D DNR
Wide Dynamic Range	Digital WDR
Backlight compensation	Yes,zone optional
Compression Standard
Video Compression	H.264 / MJPEG
H.264 compression profile	Main profile
Bit Rate	32 Kbps ~ 16 Mbps
Audio Compression	G.711/G.726/MP2L2
Audio Bit Rate	64Kbps(G.711) / 16Kbps(G.726)/ 32~128Kbps(MP2L2)
Dual Stream	Yes
Max. Resolution	1920×1080
Frame Rate	60Hz: 30fps (1920×1080) 50Hz: 25fps (1920×1080)
Image Settings	Saturation, brightness, contrast adjustable through client software or web browser
Network
Network Storage	NAS
Alarm Trigger	Motion detection, Tampering alarm, Network disconnect, IP address confict, Storage full , Storage error
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP, SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
System Compatibility	ONVIF, PSIA, CGI, ISAPI
General functionalities	User Authentication, Watermark
Interface
Communication Interface	1 RJ45 10M / 100M ethernet port
On-board Storage	Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
Audio Input/Output	1/1
Alarm Input/Output	1/1
General
Working Temperature /Humidity	-22 °F ~ 140 °F(-30 °C ~ 60 °C) , humidity 95% or less (non-condensing)
Power Supply	DC12V ± 10%, PoE (802.3af)
Power Consumption	Max. 7.5W
Impact protection	IEC60068-2-75Eh, 50J; EN50102, up to IK10
Ingress protection level	IP66
IR Range	Up to 100ft(About 30 meters)
Dimension	3.7” × 4.1” × 10.2”(95.0×105.0×258.6 mm )
Weight	2.6lbs(1200g)
