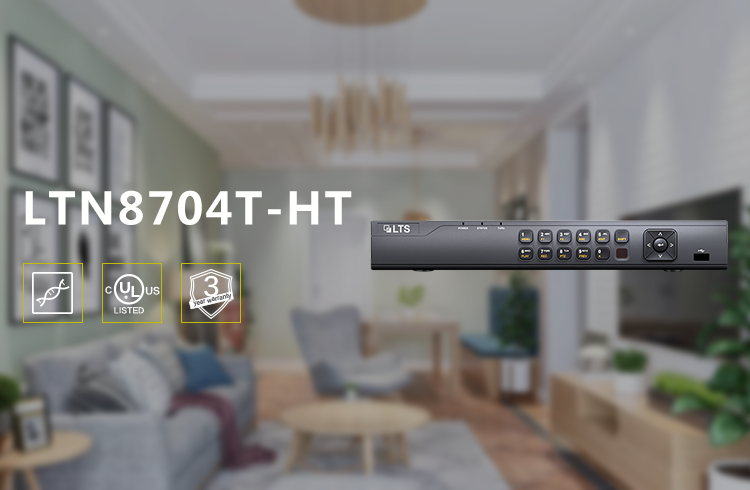

LTN8704T-HT, Platinum 4+4 Channel Hybrid NVR, 1U, 6TB
Price Sign In For Price
Promotion Sign In For Promotion
Membership Level
Price after Using Points
Get Points after Purchase
Number of Camera Channels
Number of Camera Channels
4+4CH
Max. Storage Capacity
Max. Storage Capacity
6TB
Quantity
Office
- New List
No List
- 4 + 4 Channel Hybrid Network Video Recorder
- Support Live View, Storage, Playback up to 5MP IP Camera
- Support 4 Channel HD-TVI 3.0 / AHD / Analog
- Support 4 Channel IP Camera @40MB Bandwidth
- 1080P HDMI/VGA Video Output, CVBS Spot Out
- 1 SATA HDD up to 6TB Each
- 4 Audio In, 1 Audio Out
- H.264 / H.264 Zip+
- 1 POS
| Video/Audio Input | |
| Video/Audio Input | H.264 Zip+ / H.264 |
| Video Input | 4-CH |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxition | |
| Supported HDTVI input | 3MP, 1080p/25Hz, 1080p/30Hz, 720p/60Hz, 720p/50Hz, 720p/30Hz, 720p/25Hz |
| Supported AHD input | 720p/30Hz, 720p/25Hz |
| CVBS input | Support |
| IP input | 4-ch(up to 8-ch) |
| Audio compression | G.711u |
| Audio input | 4-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Video/Audio Output | |
| HDMI/ VGA output | 1 -ch , 19 20 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz |
| Encoding resolution | 3MP@15fps, 1080p/720p/WD1/4CIF/VGA/CIF |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704×576, NTSC: 704×480 |
| Frame rate | Main stream: 30fps(N)/25fps(P) |
| Sub-stream:WD1/4CIF@12fps (non-real-time); CIF/QVGA/QCI F ( real time) | |
| Video bit rate | 32 Kbps-10 M bps |
| Audio output | 1-ch, RCA (Linear, 1 kΩ) |
| Audio bit rate | 64 Kbps |
| Dual- stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 4ch |
| Network | |
| Remote connections | 96Mbps |
| Network protocols | TCP/IP, PPPoE, DHCP, PT Cloud, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard Disk | |
| SATA | 1 SATA |
| Capacity | Up to 6TB capacity for each disk |
| External Interface | |
| Network Interface | 1, RJ45 10M / 100Mself-adapt ive Ethernet interface |
| Serial Interface | 1; RS-485 serial interface, half-duplex |
| USB Port | 2 × USB2.0 |
| Alarm In/Out | 4 In/1 Out |
| General | |
| Power Supply | DC 12V |
| Consumption | ≤ 15W |
| Working Temperature | -10 °C ~ +55 °C(14°F - 131°F) |
| Working Humidity | 10% - 90% |
| Chassis | Compact Casing |
| Dimension | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight | ≤2 Kg (4.4 lb) |
