PVR-P4-1VD,4 Channel Penta-brid 4K Mini 1U Digital Video Recorder Empower series

Price Sign In For Price

Promotion Sign In For Promotion

Membership Level

Price after Using Points

Get Points after Purchase

Member(your level)

$75.65

$6.68

Number of Camera Channels

4CH

Max. Storage Capacity

10TB

Resolution

8MP

Quantity

Office

Inventory

For shipping order, if inventory is not enough in your office, we will ship from backup office below if there is any.

Georgia - Norcross (your office)

0 pcs

Texas - Houston

0 pcs

New Jersey - Mt Laurel

0 pcs

No List

New List

GA - Georgia - Norcross

TX - Texas - Houston

NJ - New Jersey - Mt Laurel

• No Built-in PoE
• H.265+
• 24Mbps Bandwidth Max
• Resolution: 8MP
• 4CH Analog + 2CH IP
• 15fps @4K
• Max IP Resolution: 8MP
• CVI/TVI/ AHD/Analog Video Input
• 1 SATA up to 10TB
• Alarm over coaxial
• 100M, 1 Network Port
• Broadcast level audio

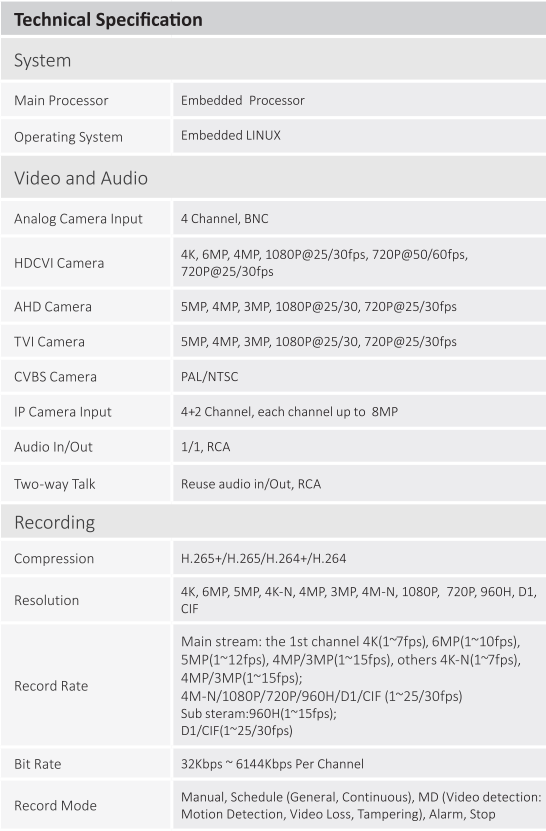

spec sheet

System Overview

With the surveillance operators pursuing to HD/UHD which further adds the storage and transmission cost, HDCVI H.265+/H.265 has been released to incredibly decrease the required bitrate while ensuring the video quality in realizing high resolution surveillance such as 4MP/4K.

This Series is designed for high cost performance and quality. The range offers a great solution for users facing budget constraints who both require quality and performance. And with the adoption of Smart H.265+/H.265, the series improves encoding efficiency, saving on bandwidth/storage costs, and significantly reducing the Total Cost of Ownership (TCO)

Functions

Smart H.265+

Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras.

HDCVI/AHD/TVI/CVBS/IP Auto-detect

The DVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.

UHD Camera Input

This series supports up to 4MP HDCVI camera and 6MP IP camera input.

Coaxial Audio/Upgrade/Alarm

The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.

Long Distance Transmission

The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.

Smart Fan Design

The smart fan can automatically turn on or turn off according to the CPU temperature. This function can effectively reduce the fan noise to provide a better user experience while extending the life of the fan at the same time.

Intelligent Video System (IVS)

With built-in intelligent video analytics, the DVR has the ability to detect and analyze moving objects for improved video surveillance. The DVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a predetermined line has been crossed.

Face Detection

It is a type technology being used in a variety of applications that search or identify individuals which show front cameras.

Smart Search

This function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency
occurs.
